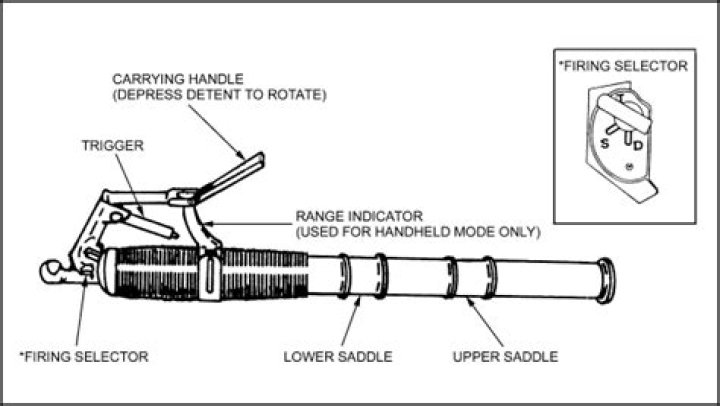

Where is the firing selector located on the m224 60mm mortar?

He is positioned to the right of the mortar, facing the barrel. He is also the FDC (fire direction center). The gunner is on the left side of the mortar where he can manipulate the sight, elevating gear handle, and traversing assembly wheel.

In respect to this, which cannon assembly is used on the m224 60mm mortar?

M224 60mm Lightweight Company Mortar System (LWCMS) A lightweight auxiliary baseplate is used when firing the mortar in the hand-held mode. The M224 Mortar System consists of the following major components: M225 Cannon Assembly (14.4 lbs)

Likewise, who determines where the mortar is to be mounted? The squad leader picks up the sight case and two aiming posts, and moves to the exact position where the mortar is to be mounted. He places the sight case and aiming posts to the left front of the mortar position. The squad leader points to the exact spot where the mortar is to be mounted.

Herein, how far can a 60mm mortar shoot?

CAPABILITIES: THE MAXIMUM RANGE OF THE 60-MM MORTAR, M224 (BIPOD MOUNTED) IS 3,400 METERS AND THE MINIMUM RANGE IS 70 METERS. THE MAXIMUM RANGE WHEN FIRING, IN THE HAND-HELD MODE, IS 1,300 METERS.

What is the range of a mortar?

The standard infantry support weapon is the M-252 81mm mortar, which lobs a 10 lb. high-explosive bomb at a range of about three miles. It is light enough to be portable when broken down into its three component parts (though carrying the awkward 29-lb.

What baseplate should the m224 60mm mortar use when firing in the handheld mode?

It should be used when the mortar is fired in the handheld mode. The lightweight M8 baseplate is used most often during offensive operations. The baseplate allows the mortar to be fired 0800 mils left and 0800 mils right of the center of sector for a total sector coverage of 1600 mils.

Which baseplate is used for the 60mm mortar in handheld mode?

60mm M224 mortar It can fire the same 60mm ammunition as the older M2 and M19, but normally uses newer long range ammunition. It is either fitted with the M7 baseplate and associated bipod or the lightweight M8 baseplate for handheld use.

How much does a 60mm mortar round cost?

Unit cost: $329 (Fiscal Year 2002). The M766 60mm mortar cartridge is a low-cost, short range, refurbishable practice round that will replace a majority of the standard High Explosive (HE) rounds used in the 60mm mortar training strategy.

What is the range of a 120mm mortar?

120 mm smoothbore mortars have maximum ranges of approximately 7,200 m to 9,500 m, when firing conventional HE mortar projectiles. Rocket-assisted mortar projectiles are also available, and these projectiles extend the range of the system.

How does a mortar work?

How does a mortar work? A Mortar is basically just a huge tube, which is closed on the bottom side and mounted on a base plate that allows for some adjustment. At the bottom of the barrel there is a fixed firing pin. If a mortar shell is dropped into the barrel and hits the pin, the propelling charge is ignited.

How much does a 81mm mortar round cost?

In 2010 U.S. dollars, new-production unguided European mortar rounds range in unit price from around $5.52 for a TDA Armements 81mm M82 HE round to $438 for a Patria 160mm H1KT HE (extended-range) round.

How much does a mortar shell weight?

The M252 is slightly lighter, about 93 pounds. Both can be broken down into several smaller loads for easier carrying. Rounds for these mortars weigh about 15 pounds each. The 107-mm mortar, M30, and the 120-mm mortar, M120, are the current US heavy mortars.

How much does a 81mm mortar weight?

M252 81mm Medium Extended Range Mortar

Specifications
Weight (Sight Unit)	2.5 pounds (1.14 kilograms)
Weight (Complete System)	89 pounds (40.41 kilograms)
Bore diameter	81mm
Maximum effective range	5700 meters

What is the kill radius of a 60mm mortar?

This gives it an effective blast radius of 35 - 40 meters. The 60mm mortar has a blast radius of about 20 - 25 meters. 120mm/122mm has a blast radius of about 60 meters.

How much do mortars cost?

Fiberglass Mortar Tubes & supplies

1.75in Consumer Fiberglass Mortar w/ Plug Special Low Cost Price: $1.69	6in Fiberglass Mortar w/ Plug Price: $23.7	10in Fiberglass Mortar Price: $83.1
12in Fiberglass Mortar Price: $92.03	Screen - 10 mesh - 100 mesh Price: $47.6	24 Shot Adjustable Mortar Rack Price: $75

How far does a mortar round travel?

It fires HE, smoke and illumination shells. The mortar can be taken apart and carried by the crew. Range is approximately 6 km."

What is a military mortar?

A mortar is an artillery weapon which fires explosive shells. The shells are known as (mortar) bombs. They are fired at targets which are close, as mortars do not have long range. It has a short barrel which fires the mortar bomb at a low speed high into the air to reach its target.

How many 60mm mortars are in a section?

Marine rifle companies have a section with three 60mm mortars in the company weapons platoon.

Can mortars destroy tanks?

That includes relatively small caliber mortar rounds. As long as the hatches are closed the crew is fine unless we're talking 120mm DPICM or STRIX rounds. The bigger issue is using fragmentation to kill weapons, optics and antenna's. You don't need to hard-kill a tank, you need to destroy its capacity to fight.

How much damage can a mortar do?

At level 1, the Mortar does 20 damage per shot (= 4 damage/sec) with a 1.5 tile splash radius.

Can you really throw a mortar round?

This method of triggering, combined with the greater explosive force of a mortar, made them way more deadly than grenades. But a hand-thrown mortar round will usually explode as soon as it hits the ground or a solid object, making it nearly impossible to throw back.

How big is a mortar explosion?

Due to the difference in available volume, a smooth-bore mortar of a given diameter will have a greater explosive yield than a similarly sized artillery shell of a gun or howitzer. For example, a 120 mm mortar bomb has approximately the same explosive capability as a 155 mm artillery shell.

How high does a mortar shell go?

A rule of thumb to calculate how high an artillery shell will go is 1” diameter = 70 feet in height. So the average 1.75” shell will go approximately 120 feet in the air. A 3 inch shell (the largest allowed for consumers) will travel approximately 210 feet in the air.

What is mortar used for?

Mortar is used to hold building materials such as brick or stone together. It is composed of a thick mixture of water, sand, and cement. The water is used to hydrate the cement and hold the mix together. The water to cement ratio is higher in mortar than in concrete in order to form its bonding element.
