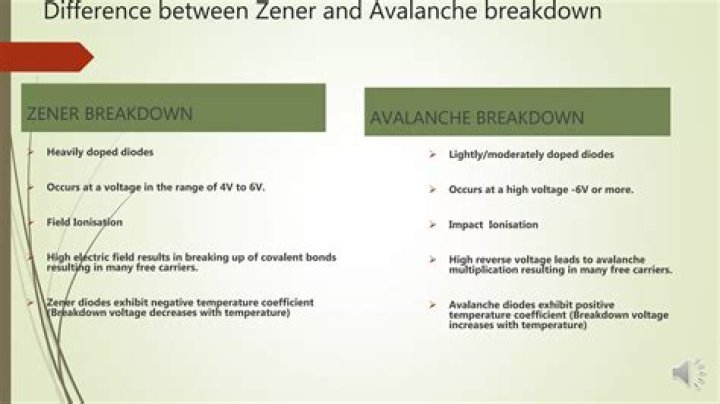

The main difference between Zener breakdown and avalanche breakdown is their mechanism of occurrence. Zener breakdown occurs because of the high electric field whereas, the avalanche breakdown occurs because of the collision of free electrons with atoms. Both these breakdowns can occur simultaneously..
Correspondingly, what is avalanche breakdown in semiconductor?
Avalanche breakdown is a phenomenon that can occur in both insulating and semiconducting materials. It is a form of electric current multiplication that can allow very large currents within materials which are otherwise good insulators. It is a type of electron avalanche.
One may also ask, what are the different types of breakdowns? Different Types of Breakdown Diodes and their Applications
- Breakdown Diodes.
- Zener Diode.
- PN Junction Breakdown Diode.
- Zener Breakdown Diode.
- Avalanche Breakdown.
Beside above, what is meant by Zener breakdown?
The Zener breakdown can be defined as the flow of electrons across the p kind material barrier of the valence band to the evenly filled n-type material conduction band.
What causes avalanche breakdown?
Avalanche break down occurs due to thermal collision caused by the increased reverse bias voltage, while the Zener breakdown occurs due to the strong electric field caused by the high doping (narrow depletion region).
Related Question Answers
How does Zener breakdown occur?
The Zener effect is a type of electrical breakdown that occurs in a reverse-biased PN junction when the electric field enables tunnelling of electrons from the valence to the conduction band of a semiconductor, leading to a large number of free minority carriers which suddenly increase the reverse current.What is avalanche process?
An electron avalanche is a process in which a number of free electrons in a transmission medium are subjected to strong acceleration by an electric field and subsequently collide with other atoms of the medium, thereby ionizing them (impact ionization).What happens at breakdown voltage?
The maximum reverse bias voltage that can be applied to a p-n diode is limited by breakdown. Breakdown is characterized by the rapid increase of the current under reverse bias. The corresponding applied voltage is referred to as the breakdown voltage. The breakdown voltage is a key parameter of power devices.What is breakdown region?
breakdown region. [′brāk‚dau?n ‚rē·j?n] (electronics) Of a semiconductor diode, the entire region of the volt-ampere characteristic beyond the initiation of breakdown for increasing magnitude of bias.Why does avalanche breakdown increase with temperature?
Due to increase in temperature ,vibrations of atoms increases and thus reduces the mean free path for electrons. Hence in avalanche breakdown, breakdown voltage increases with increase in temperature. Thus avalanche breakdown is positive temperature coefficient.What is the zener breakdown voltage?
The Zener Breakdown is observed in the Zener diodes having Vz less than 5V or between 5 to 8 volts. When a reverse voltage is applied to a Zener diode, it causes a very intense electric field to appear across a narrow depletion region.What is breakdown mechanism?
Electrical breakdown or dielectric breakdown is when current flows through an electrical insulator when the voltage applied across it exceeds the breakdown voltage. This results in the insulator becoming electrically conductive.What is the main cause of Zener breakdown?
The zener breakdown occurs in heavily doped p-n junction diodes because of their narrow depletion region. When reverse biased voltage applied to the diode is increased, the narrow depletion region generates strong electric field.What is Zener region?
Definition: A heavily doped semiconductor diode which is designed to operate in reverse direction is known as the Zener diode. In other words, the diode which is specially designed for optimising the breakdown region is known as the Zener diode.What is knee voltage?
The minimum amount of voltage required for conducting the diode is known as “knee voltage” or “cut-in-voltage". And also said as The forward voltage at which the current through PN junction starts increasing rapidly is known as knee voltage. Knee voltage of “germanium” diode is-0.3volts.What do u mean by diode?
A diode is a specialized electronic component with two electrodes called the anode and the cathode. Most diodes are made with semiconductor materials such as silicon, germanium, or selenium. The fundamental property of a diode is its tendency to conduct electric current in only one direction.What is Zener effect and Avalanche effect?
Relationship to the avalanche effect In general, diode junction breakdowns occurring below 5 volts are caused by the Zener effect, whereas breakdowns occurring above 5 volts are caused by the avalanche effect. Breakdowns occurring at voltages close to 5V are usually caused by some combination of the two effects.What is Zener knee voltage?
A zener diode is a unique diode that allows current to flow in the forward direction in the same manner as an ideal diode, but will also permit it to flow in the reverse direction when the voltage is above a certain value known as the breakdown voltage, "zener knee voltage" or "zener voltage".How long can a mental breakdown last?
A nervous breakdown is not a diagnosable mental health condition, and that means there are no official criteria to describe it, including duration. These mental health crises are highly variable, lasting a few hours for one person or weeks for another.What is a mental breakdown like?
However, 16 common signs and symptoms of a nervous or mental breakdown are: feeling anxious, depressed, tearful, or continuously irritable. feeling helpless, hopeless, and having low self-esteem. withdrawing or avoiding normal social situations.What is a nervous breakdown called today?
The meaning of the term and its clinical significance today Instead, a nervous breakdown is a catchall, colloquial phrase that describes symptoms that may represent a number of different psychiatric conditions.What is the difference between a nervous breakdown and a mental breakdown?
The term nervous breakdown refers to a range of mental health crises related to stress and that cause a person to be unable to function normally. While this is not a specific mental health diagnosis, nervous breakdown is a real and serious situation that can have profound effects on the person experiencing it.Why am I having a mental breakdown?
A nervous breakdown is ultimately caused by an inability to cope with large amounts of stress, but how that manifests exactly varies by individual. Work stress, mental illness, family responsibilities, and poor coping strategies are all things that can lead to a nervous breakdown and the inability to function normally.What is avalanche breakdown when does it occur?
Avalanche breakdown occurs in a pn junction diode which is moderately doped and has a thick junction (means its depletion layer width is high). Avalanche breakdown usually occurs when we apply a high reverse voltage across the diode (obviously higher than the zener breakdown voltage,say Vz).
