What is the use of Hartley oscillator?

Hartley Oscillator is a device that generates oscillatory output (sinusoidal). It consists of an amplifier linked to an oscillatory circuit, also called LC circuit or tank circuit. The function of tank circuit is to tune a certain frequency. LC oscillators are designed to operate in the radio-frequency range.

.

Similarly, it is asked, why Hartley oscillator is used?

Hartley Oscillator. Hartley Oscillator is a type of harmonic oscillator which was invented by Ralph Hartley in 1915. These are the Tuned Circuit Oscillators which are used to produce the waves in the range of radio frequency and hence are also referred to as RF Oscillators.

Also, where is Hartley oscillator used? Application: Hartley Oscillators are mainly used in radio receivers. Also note that due to its wide range of frequencies it is the most popular oscillator.

Also Know, what is meant by Hartley oscillator?

The Hartley oscillator is an electronic oscillator circuit in which the oscillation frequency is determined by a tuned circuit consisting of capacitors and inductors, that is, an LC oscillator. The circuit was invented in 1915 by American engineer Ralph Hartley.

What is the use of Colpitts oscillator?

Colpitts Oscillator. Oscillator is an amplifier with the positive feedback and it converts DC input signal into AC output waveform with certain variable frequency drive and certain shape of output waveform (like sine wave or square wave, etc) by using the positive feedback instead of input signal.

Related Question Answers

What is difference between amplifier and oscillator?

Difference between amplifier and oscillators. Amplifier is an electronic circuit which gives output as amplified form of input. Oscillator is an electronic circuit which gives output without application of input. The amplifier does not generate any periodic signal.

How oscillation is produced?

An oscillator circuit uses a vacuum tube or a transistor to generate an AC output. The output oscillations are produced by the tank circuit components either as R and C or L and C. For continuously generating output without the requirement of any input from preceding stage, a feedback circuit is used.

Which oscillator is used for high frequency?

The LC Oscillator is therefore a “Sinusoidal Oscillator” or a “Harmonic Oscillator” as it is more commonly called. LC oscillators can generate high frequency sine waves for use in radio frequency (RF) type applications with the transistor amplifier being of a Bipolar Transistor or FET.

What is the mean of oscillation?

Oscillation is the repetitive variation, typically in time, of some measure about a central value (often a point of equilibrium) or between two or more different states. Familiar examples of oscillation include a swinging pendulum and alternating current.

What is Oscillator and types?

There are two kinds of electronic oscillators are available, namely linear oscillator and nonlinear oscillator. The linear oscillator gives the sinusoidal whereas nonlinear oscillator gives non sinusoidal or complex waveforms like square, sawtooth, trapezoidal and rectangular.

Why is tank circuit called so?

Also known as an inductor-capacitor circuit, an LC circuit, a resonator circuit or a tuned circuit, a tank circuit is a simple electrical circuit that uses magnetic resonance to store an electrical charge or produce an electromagnetic frequency.

What is RC and LC oscillator?

The oscillation frequency is proportional to the inverse of the capacitance or resistance, whereas in an LC oscillator the frequency is proportional to inverse square root of the capacitance or inductance. So a much wider frequency range can be covered by a given variable capacitor in an RC oscillator.

How do you make a Hartley oscillator?

The Hartley oscillator is used to produce sine wave with the desired frequency,it is mainly used as radio receivers due to the wide range of frequencies. Thus the Hartley oscillator is designed for high frequencies by using small values of Leq and C.

What do you mean by oscillator?

An electronic oscillator is an electronic circuit that produces a periodic, oscillating electronic signal, often a sine wave or a square wave. Oscillators convert direct current (DC) from a power supply to an alternating current (AC) signal.

What is the basic principle of oscillators?

There are many types of electronic oscillators, but they all operate according to the same basic principle: an oscillator always employs a sensitive amplifier whose output is fed back to the input in phase. Thus, the signal regenerates and sustains itself. This is known as positive feedback.

What do you mean by inductance?

In electromagnetism and electronics, inductance is the tendency of an electrical conductor to oppose a change in the electric current flowing through it. A change in current causes a change in the magnetic field.

What is Oscillator and its working?

An oscillator is a circuit which produces a continuous, repeated, alternating waveform without any input. Oscillators basically convert unidirectional current flow from a DC source into an alternating waveform which is of the desired frequency, as decided by its circuit components.

What are the conditions for oscillation?

Conditions for Oscillation: (Barkhausen Criterion) |Aβ| = 1, ie, the magnitude of loop gain must be unity. 2. The total phase shift around the closed loop is zero or 360 degrees. The condition |Aβ| = 1 is the ideal condition.

What is difference between Hartley and Colpitts oscillator?

Colpitts Oscillator is an electronic oscillator which uses an inductor and capacitors to form an LC oscillator circuit. Thus the main difference between a Colpitts Oscillator and a Hartley Oscillator is that the former uses tapped capacitance, while the latter uses tapped inductance.

What is the frequency of Hartley oscillator?

Hartley oscillators are commonly used in radio frequency (RF) oscillator applications and the recommended frequency range is from 20KHz to 30MHz. Hartley oscillators can be operated at frequencies lower than 20KHz, but for lower frequencies the inductor value need to be high and it has a practical limit.

What is frequency of oscillation?

The frequency (f) of an oscillation is measure in hertz (Hz) it is the number of oscillations per second. The time for one oscillation is called the period (T) it is measured in seconds.

What do u mean by transistor?

A transistor is a device that regulates current or voltage flow and acts as a switch or gate for electronic signals. Transistors consist of three layers of a semiconductor material, each capable of carrying a current.

What are the disadvantages of Hartley oscillator?

DISADVANTAGES of Hartley oscillator

• It cannot be used as a low frequency oscillator since the value of inductors becomes large and the size of the inductors becomes large.
• The output is rich in harmonics and therefore not suitable where a pure sine wave is required.

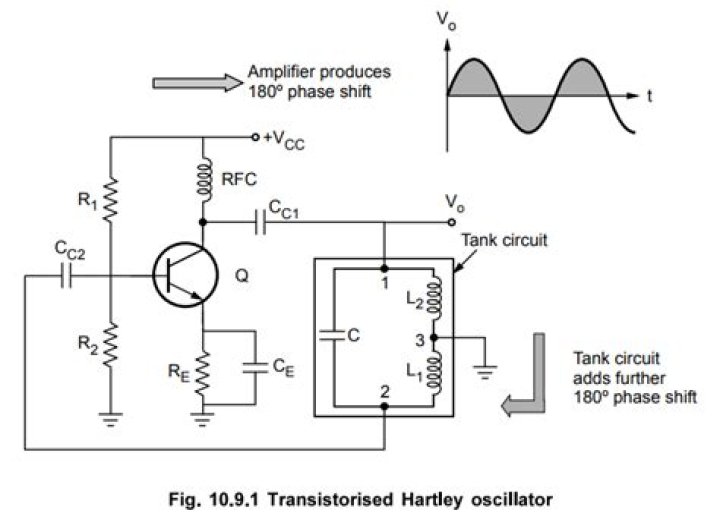

How the oscillations are produced in Hartley oscillator?

Basic Hartley Oscillator Design At the frequency of oscillation, the impedance of the Collector load is resistive and an increase in Base voltage causes a decrease in the Collector voltage. Also the Hartley Oscillator produces an output amplitude which is constant over the entire frequency range.
