What is the rough opening of a doorway?

The standard height of the rough opening for a door is the door height plus 2 5/8 inches. The additional room allows for a 3/4-inch top jamb, a shim space above the door jamb and the thickness of underlayment and finish flooring.

.

Also asked, how big should a rough door opening be?

Framing rough opening sizes are really quite simple. Just add 2″ to the width of the actual door size. You should add 2-1/2″ to the height of the actual door. This will give you room to space the door frame off of the sub-floor.

One may also ask, how much space do you need for a door opening? A 30-inch doorway width allows one person at a time to pass through the doorway. A minimum clearance of 36 inches is required from doorways wide enough for two people to pass through at the same time, in addition to the allowance for the door swing.

Just so, what is the rough opening of a 36 inch door?

Typically a pre-hung door is measured in 30-inch and 36-inch sizes with additional sizes available in non-standard widths. The doors are also a standard 80 inches tall. Presuming the door is a 36-inch wide door, the dimensions of your opening should be 37½ inch wide by 81½ inch tall.

How big should a rough opening be for a 32 inch door?

Rough Opening for 32 Inch Door For example a two-foot, eight inch (32”) by six feet, eight inch high (80”) prehung door, would require a rough opening width of 34 inches and a height of 82 inches.

Related Question Answers

How big of a gap should there be at the bottom of a door?

There is an approximately 1.5" gap at the bottom of the doors.

What size header do I need for a 36 inch door?

A typical header width with single jack studs is cut 3″ larger than the rough opening. An example: A 36″ door has a rough opening width of 38″ so your header is cut at 41″.

What is the rough opening for a 3 0 door?

Door Specifications
Door Width	Rough Opening Width	Rough Opening Height 6/8
3/0 (Single)	38"	82-1/2"
4/0 (Double)	*50"	82-1/2"
4/8 (Double)	*58"	82-1/2"

How do you frame a rough opening for a door?

1. Mark all the plates at once

1. Measure the distance between the king studs (door width plus 5 in.).
2. TIP: Mark and measure at the same time.
3. Mark the cripple locations.
4. Keep edges flush.
5. Transfer the layout marks to the header.
6. First, fasten the header to the king stud.
7. Add the cripples before the double top plate.

What does rough opening mean?

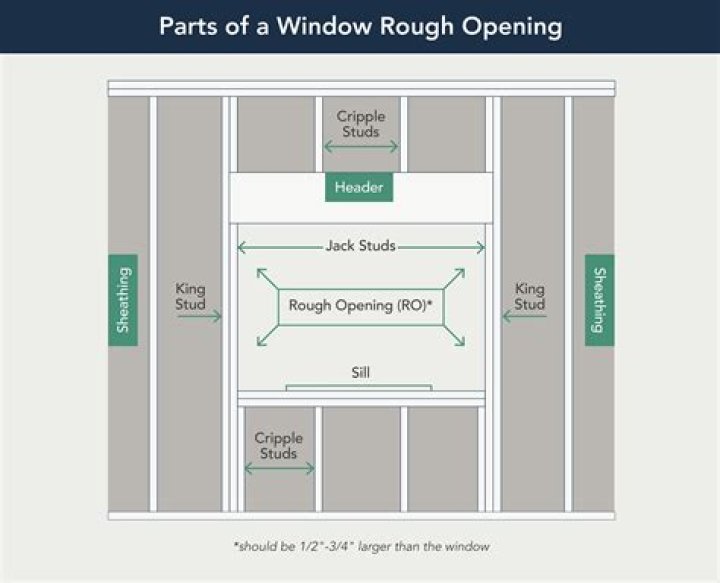

Term. Definition. Rough opening. The horizontal and vertical measurement of a window or door opening before drywall or siding is installed.

How do you determine the swing of a door?

To determine the door swing while replacing an existing door, step into the doorway with your back to the hinges, standing sideways in the opening, facing the jamb where the door latches. If the open doorknob is on your right side, it's a right-hand door. If it's on your left side, the door is left handed.

How much clearance do you need for an interior door?

Typically, the gap left around the door is from 1/16 inch to 1/8 inch to allow for the doors to close without binding on the jambs and the door stop.

Why are there gaps under doors?

The gap is necessary to act as an air return when the doors are closed. Without the gap, little air will come out of the supply ductwork. It can impact the "balance" of your system.
