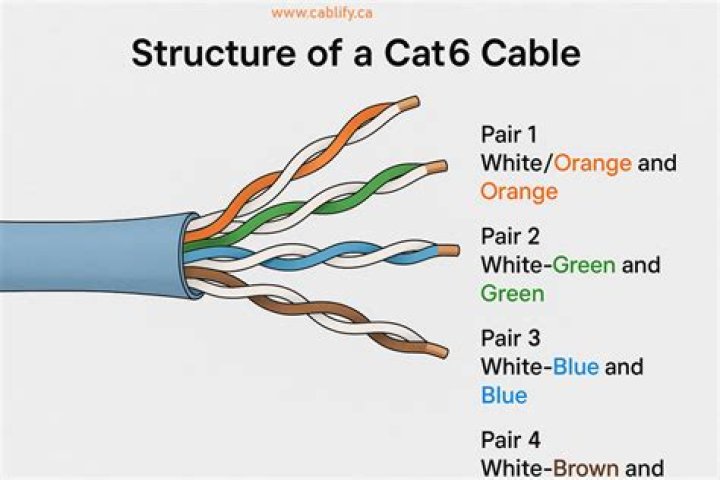

What is the diameter of Cat 6 cable?
By Jessica Cortez •
Characteristics
| Property | Nominal | Unit |
|---|---|---|
| Max tensile load, during installation | 100 | N |
| Wire diameter | 24 AWG (0.51054 mm; 0.205 mm2) | |
| Insulation thickness | 0.245 | mm |
| Maximum current per conductor | 0.577 | A |
.
Similarly, what is the diameter of cat6a cable?
The outside diameter of CAT6A F/UTP can be as large as 0.354” compared to 0.265” – 0.30” for CAT6A F/UTP, and 0.21” – 9.24” for CAT6. CAT6A UTP cable design differs among manufacturers.
Subsequently, question is, what is the diameter of CAT 5 cable? Description: CAT5-SF/UTP cable (J-02YS(ST)C HP 2 x 2 x 24 AWG), heavy-duty installation cable, 2 x 2 x 0.22 mm², solid conductor, shielded, outer sheath: 7.8 mm diameter, inner sheath: 5. 75 mm ± 0.15 mm diameter, preassembled on both sides with RJ45 plug, Cable Length: 0.8202 to 3281 ft.
Also to know is, what is the diameter of an Ethernet cable?
Characteristics
| Property | Nominal | Unit |
|---|---|---|
| Wire diameter | 24 AWG (0.51054 mm; 0.205 mm2) | |
| Insulation thickness | 0.245 | mm |
| Maximum current per conductor | 0.577 | A |
| Operating temperature | −55 to +60 | °C |
How long can I run a cat6a cable?
Cat 6A requirements are addressed in standards from multiple organizations. Regardless of the standard, all Cat 6A cabling will provide 10 Gb/s data rates, operate at a maximum frequency of 500 MHz, and have a maximum distance of 100 meters.
Related Question AnswersWhat is the speed of cat6 cable?
A Cat6 cable has a bandwidth capacity of 250 MHz, for example, and it offers you speeds of up to 10 Gbps. It's also compatible with both Cat5 and Cat5E cables. “A Cat6 cable is used mainly for computer networks reaching a GB, 1000 Mbps or one Gbps of data transfer speed (DTR) or higher,” says Techopedia.What is S FTP?
SFTP stands for Screened Fully shielded Twisted Pair. This is a special type of cable that uses multiple versions of metal shielding to block outside interference from disrupting signals transmitted across the wires. It incorporates the methods employed by several other cables to achieve maximum protection.How many cat6 cables fit in a 4 inch conduit?
Using a 6.5mm (0.256) Diameter cable, you can fit only 5 cables per conduit. However, this assumes the cables are perfectly circular and non-deformable. If you assume you can deform the cables, or you use a slightly smaller cable, you can fit up to 7 without destroying the cables.What is difference between cat6 and cat6a?
Cat6a supports bandwidth frequencies of up to 500 MHz, twice the amount of Cat6 cable, and can also support 10Gbps like its predecessor. However, unlike Cat6 cabling, Cat6a can support 10 Gigabit Ethernet at 100 meters. [Cat6 cabling on the other hand, can transmit the same speeds at up to 37 meters.]What is Cat 6 cable used for?
Cat-6. Short for Category 6, Cat-6 network cabling is used as the cabling infrastructure for 10BASE-T (Ethernet), 100BASE-TX (Fast Ethernet), 1000BASE-T (Gigabit Ethernet, or GbE) and 10GBASE-T (10-Gigabit Ethernet, or 10 GbE) networks.How many cat6 cables are in conduit?
5 cablesWhat is the bending radius of cable?
According to Table 1, the minimum bend radius is found to be six times the cable's overall diameter. The overall diameter of the cable is given as 2.08 inches in the product catalog. Multiplying 2.08 inches by six, we get 12.48 inches. The minimum bending radius for this SHD-GC cable is approximately 12.5 inches.What is Cat 5e cable used for?
Short for Category 5 Enhanced, Cat-5e network cabling is used as a cabling infrastructure for 10BASE-T (Ethernet), full duplex 100BASE-TX (Fast Ethernet) and 1000BASE-T (Gigabit Ethernet, or GbE) networks. The Cat 5e standard provides performance of up to 100 MHz and can be used up to a maximum length of 100 meters.Is Cat 5e Ethernet?
Since 2001, the variant commonly in use is the Category 5e specification (Cat 5e). The cable standard provides performance of up to 100 MHz and is suitable for most varieties of Ethernet over twisted pair up to 1000BASE-T (Gigabit Ethernet). Cat 5 is also used to carry other signals such as telephony and video.What is difference between CAT 5 and CAT 6?
The main difference between cat5 and cat6 cables is reduced “crosstalk” and faster speeds in the transferring of data and connection. Cat5 and cat6 cables both share the same end piece, the plug that connects them to their end destination, being a patch panel or a modem.What is the best Ethernet cable?
The best Ethernet cables at a glance- Vandesail Ethernet Cable — Cat 7.
- Mediabridge Ethernet Cable — Cat 6a.
- AmazonBasics RJ45 Ethernet Cable — Cat 6.
- CableGeeker Flat Black 100FT Cable with Sticky Clips — Cat 6.
- Cables Direct Online 30FT Cable — Cat 5e.
What do you mean by Ethernet?
Ethernet is a way of connecting computers together in a local area network or LAN. It has been the most widely used method of linking computers together in LANs since the 1990s. The basic idea of its design is that multiple computers have access to it and can send data at any time.How thick is a cat 6 cable?
Cat6 cabling standards typically utilize 23-AWG conductor. That = . 0226 inches in diameter per wire.How many amps can Ethernet cable carry?
I would suggest between roughly 1.5 amps and 2.2 amps based on quality of cable based on googling limit for power transmission on 23 and 24 gauge wire, lowest end for cheapest copper clad aluminium 24 gauge wire.What is standard Ethernet cable?
Category 5 cable (Cat 5) is a twisted pair cable for computer networks. The cable standard provides performance of up to 100 MHz and is suitable for most varieties of Ethernet over twisted pair up to 1000BASE-T (Gigabit Ethernet). Cat 5 is also used to carry other signals such as telephony and video.What is the fastest Ethernet cable?
What does 'Cat' mean?| Category | Shielding | Max Transmission Speed (at 100 meters) |
|---|---|---|
| Cat 5 | Unshielded | 10/100 Mbps |
| Cat 5e | Unshielded | 1,000 Mbps / 1 Gbps |
| Cat 6 | Shielded or Unshielded | 1,000 Mbps / 1 Gbps |
| Cat 6a | Shielded | 10,000 Mbps / 10 Gbps |
