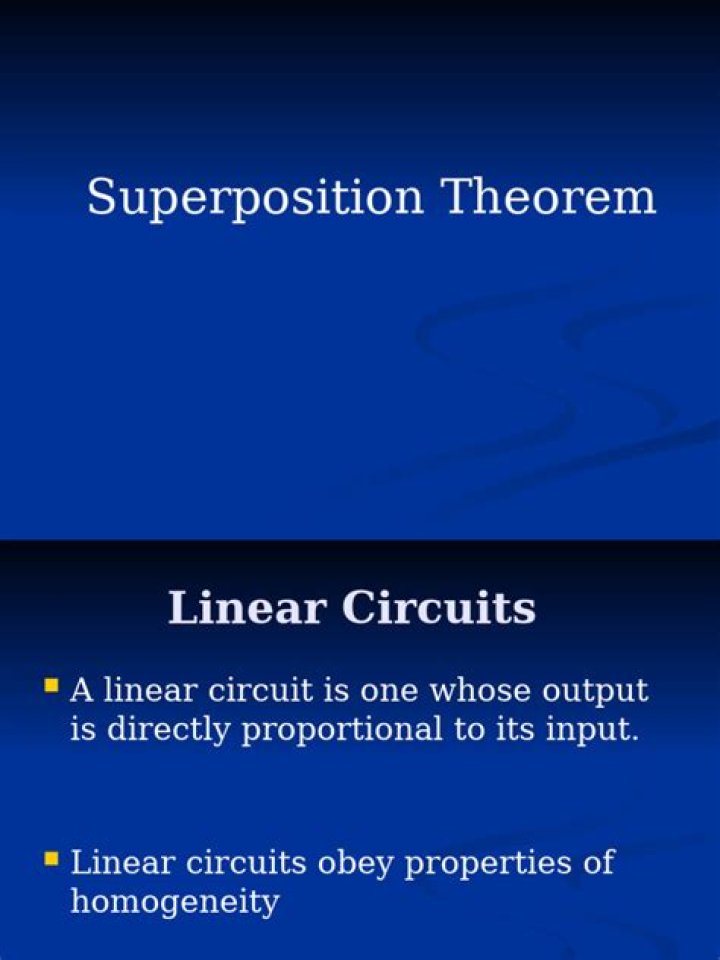

Superposition Theorem • The superposition theorem extends the use of Ohm’s Law to circuits with multiple sources. • Definition :- The current through, or voltage across, an element in a linear bilateral network equal to the algebraic sum of the currents or voltages produced independently by each source.

What is superposition theorem example?

Superposition theorem states that in any linear, bilateral network where more than one source is present, the response across any element in the circuit, is the sum of the responses obtained from each source considered separately while all other sources are replaced by their internal resistance.

How do you solve superposition theorem?

To solve a circuit using superposition, the first step is to turn off or suppress all but one input.

1. To suppress a voltage source, replace it with a short circuit.
2. To suppress a current source, replace it with an open circuit.

What is the necessary condition for superposition theorem to be applicable in any linear active and bilateral network?

All the components of the circuit must be bilateral, meaning the current will remain the same for opposite polarities of the source voltage.

What is the limitation of superposition theorem and replace dependent sources?

Limitations of Superposition Theorem For power calculations superposition theorem cannot be used as this theorem works based on the linearity. Because the power equation is not linear as it is the product of voltage and current or square of the current or square of the voltage.

What are the limitations of superposition theorem?

What are the limitations of superposition theorem

• It is used to measure current and voltage but cannot be used to measure power.
• Applicable only for linear circuits.
• There must be more than one source to apply this theorem.
• This is not applicable for unbalanced bridge circuits.

What is superposition theorem problems?

Superposition theorem states that, “In any linear, bilateral network having more than one source, the response across any element is the sum of the responses obtained from each source considered separately and all other sources are replaced by their internal resistance.”

What is the limitation of superposition theorem?

Limitations of Superposition Theorem Because the power equation is not linear as it is the product of voltage and current or square of the current or square of the voltage. Thus the power consumed by the element in a given circuit with superposition theorem is not possible.

What is the limitations of superposition theorem?

What is the conclusion of superposition theorem?

The superposition theorem states that a circuit with multiple voltage and current sources is equal to the sum of simplified circuits using just one of the sources.

What are the conditions under which superposition theorem Cannot be applied?

Superposition Theorem works only for circuits that are reducible to series/parallel combinations for each of the power sources at a time (thus, this theorem is useless for analyzing an unbalanced bridge circuit), and it only works where the underlying equations are linear (no mathematical powers or roots).

What are disadvantages of superposition theorem?

The superposition theorem states that the total current in any part of a linear circuit equals the algebraic sum of the currents produced by each source separately. Disadvantages – Superposition is applicable to current and voltage but not to power. It cannot be used for unbalanced bridge circuits.
