What is shrinking metal?

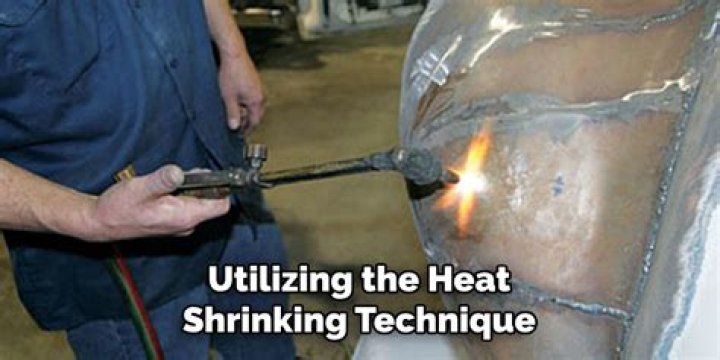

Hot shrinking is a process in car bodyworks. As the name suggest heat will be involved, while "shrinking" is the process of straightening a metal section. This is a method of panel beating where a panel is first heated to make it softer. In most cases heating will be done by use of the oxyacetylene flame.

.

People also ask, can you shrink steel?

* Heating up metal and throwing cold water on it may shrink it a tiny bit, but it makes distortion and hard steel. * DO not over-heat the steel. Heat to blue only and shrink that much. You can do it again, if needed, but over-shrinking can be more of a problem than under-shrinking.

Similarly, how do you shrink sheet metal in hammer and dolly? To shrink stretched metal, you need a wood hammer, a dolly, a torch, and a wet rag. Use a permanent marker to mark the area you need to shrink, this is critical as once you get going, you can easily lose the spot. Using a rosebud torch tip, heat the center of the metal to be shrunk.

In this regard, how do you shrink aluminum?

Shrinking aluminum is subtle. To shrink aluminum, choose a hammer of the right size, shape and weight, or use a spoon or slapper and dolly. Next, use mechanical advantage. Some off-dolly straightening as the simple leverage of working the low spot, used against a high one, shrinks the metal.

Does heating metal shrink it?

It's common that a metal expands when it is heated, whereas it shrinks when it is cooled. What will happen if hot metal and cold metal surfaces touch each other? If they are bonded, then the hot piece will shrink and the cold one will expand, but as they are bonded the assembly will warp.

Related Question Answers

What is a slapping spoon?

A slapping spoon is also good for removing hammer dents and marks from sheet metal. Many times some one (an idiot) will quickly beat a dent out of a fender with a claw hammer or a ball peen hammer and leave the sheet metal all bumpy. A slapping spoon used with a dolly will smooth that right out.

Does cold shrink metal?

When it is cold the kinetic energy decreases, so the atoms take up less space and the material contracts. Some metals expand more than others due to differences in the forces between the atoms / molecules. A gas will expand the most as its atoms are free from each other so are free to increase in speed the most.

How do you shrink a metal body?

Remember, metal will initially expand when you heat it. As you hammer a nearly liquid-hot bead against a dolly, you are simply forcing the molecules into a smaller area. The "shrinking" happens as the metal cools down, so wait until it has completely cooled before determining whether it needs more shrinking or not.

Does Bondo shrink?

There is no minimum thickness for Bondo, but there is absolutely a maximum. You do not want to apply body filler to anything that is thicker than about a 1/4”. That does not mean it can't be done, but the repair will not last as long. Eventually the filler will shrink and possibly crack or even fall off.

Does aluminum shrink when heated?

Yes, you can heat shrink aluminum too, so don't worry yourself that it can't be done. It's basically the same basic process with this one major difference: Your shrink temperature is much, much lower (aluminum — 550 degrees F; steel — 2,000 degrees F).

Which expands more steel or aluminum?

By contrast, iron, with a coefficient of 1.2, is 24 times more likely to expand or contract as a result of changes in temperature. (Steel has the same value as iron.) The coefficient for aluminum is 2.4, twice that of iron or steel.

How do you shrink a metal ring?

Method 1 Resizing the Ring with Silicone

1. Clean your ring with soap and water. Scrub the ring thoroughly using dish soap and warm water to wash off any oils or particles.
2. Apply a layer of silicone inside the ring.
3. Smooth out the silicone with the stir stick.
4. Let the silicone dry.
5. Try on the ring once the silicone is dry.

What is an oil can dent?

The term is used when doing a sheet metal repair where the metal is stretched and it needs to be shrunk by a torch,shrinking disk,or uni-spotter tip. Back in the day they used to have little cans with oil in them and a spout on top.

How do you use a shrinking disk?

Use an 80 grit abrasive paper to smooth the spinning disc. Apply a light coating of soapy water to the surface for cooling the hot metal surface. The metal surface turns hot when it contacts the shrinking disc and the metal shrinks when cooled. When you successfully shape the surface, prep as required for the primer.

Does stainless steel expand when heated?

Notice from this chart that the stainless grows at a much faster rate, when heated, than does tungsten carbide. As these two metals are heated up to brazing temperature, the brazing joint clearance between them will change as the stainless steel expands at a faster rate than the carbide.

How do you shrink stainless steel?

When straightening stainless steel, heat it only until a deep brown color is seen on the surface. The heat shrink begins at an edge or in a single spot. For a full shrink on steel, the spot is heated until a dull red color is seen. The torch can now be moved along the length of the area to be straightened.

Does aluminum expand when heated?

When the temperature of aluminium is increased, the metal expands and this is called thermal expansion. As a result of the adjustment of the temperature of the metal, thermal expansion of 3 mm is observed.

Do you use heat to bend aluminum?

Hot Forming Aluminum If you bend anything harder than 5054 aluminum, you will need to anneal it by heating along the bend line. If you don't, such hard aluminum will crack and break during forming. Aluminum melts between 865 and 1,240 degrees F, so you obviously can't heat it as much as steel.

How do you shrink aluminum tubing?

Video of the Day

1. Place your aluminum sheet onto a work surface.
2. Heat up a quarter-sized spot on the aluminum sheet.
3. Touch the tip of a prefabricated 550-degree crayon to the hot spot at a 45-degree angle.
4. Hammer the aluminum with short, rapid strokes around the hot spot as soon as the shrink temperature is reached.

How do you fix stretched metal?

A common recommended fix is to use oxy/acetylene heat to create a localized hot spot that bulges the metal above the mean surface of the panel. The bulge can then be tapped down flat with a hammer and dolly to thicken the metal in that spot. This takes away some of the “stretch”.

Does paintless dent work?

Standard paintless dent repairs are very time efficient and, in most cases, can be completed same day. However, PDR times can vary based on severity of damage such as size, positioning on vehicle, and quantity of dents, dings, or creases.

Which hammer is used for sheet metal work?

Mallet

How do you shape metals?

Mark a bend line and place the sheet metal on the edge of your bench. Next place the wood parallel and slightly behind the bending line. Clamp the wood on top of the metal to the workbench. Finally, bend the sheet up by hand to the angle desired.
