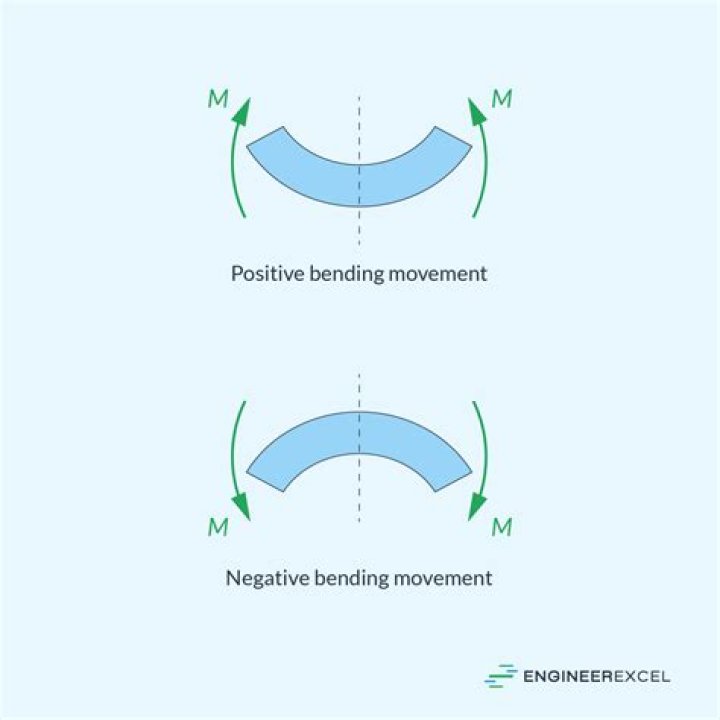

Qualitative Deflected Shape Following our positive beam sign convention, a positive bending moment bends a beam concave upward (or towards the positive y direction), whereas a negative bending moment bends a beam concave downward (or towards the negative y direction)..
Correspondingly, can bending moment be negative?
By convention, if tension due to bending moment is at bottom side or compression at top side of the beam, then it is called positive bending moment. This is also called sagging moment. If the beam is continuous and supported by many equally spaced supports, bending moments at support locations will be negative.
Also Know, which way is a positive moment? A moment applied to the body is positive if it tries to turn the body in a counter-clockwise direction and negative if it tries to turn the body in a clockwise direction.
Likewise, what is positive bending?
Positive Bending Moment Simply supported beam loaded from the top. In a more strict sense, positive bending is a sagging beam. Positive bending is whenever the beam tends to sag downwards. Negative bending bows upwards - called hogging.
How do you know if a shear is positive or negative?
A shear stress acting on a positive face is positive if it acts in the positive direction of an axis, and negative if it acts in the negative direction of an axis. A shear stress acting on a negative face is positive if it acts in the negative direction of an axis and negative if it acts in the positive direction.
Related Question Answers
What is SFD and BMD?
BMD(Bending moment diagram ) is a diagram representing the variation of bending moment along the length of member . SFD(shear force diagram ) is diagram representing variation of shear force along the length of structural member .What is the formula for bending moment?
When this moment is applied perpendicular to axis of a shaft or a beam than it is called bending moment. The equation of pure bending moment of a beam having very high slenderness ratio is M/I=S/y=E/R.What is the use of SFD and BMD?
If we take Simply Supported Beam, the Maximum Shear Force is at the ends and the Maximum Bending is at Center point. So the use of finding the SFD and BMD is to know the exact placement of reinforcements in the structure to counteract the force and moment.What do you mean by shear force?
shear force. A force acting in a direction parallel to a surface or to a planar cross section of a body, as for example the pressure of air along the front of an airplane wing. Shear forces often result in shear strain. Resistance to such forces in a fluid is linked to its viscosity. Also called shearing force.What is point of Contraflexure?
In a bending beam, a point is known as a point of contraflexure if it is a location where bending moment is zero (changes its sign). In a bending moment diagram, it is the point at which the bending moment curve intersects with the zero line.What is a negative moment?
Following our positive beam sign convention, a positive bending moment bends a beam concave upward (or towards the positive y direction), whereas a negative bending moment bends a beam concave downward (or towards the negative y direction).What is the maximum bending moment?
Explanation: The maximum bending moment occurs in a beam, when the shear force at that section is zero or changes the sign because at point of contra flexure the bending moment is zero.What is Moment capacity?
The moment capacity is maximum bending moment that can be resisted by an element before it fails in bending.What do you mean by pure bending?
Pure bending ( Theory of simple bending) is a condition of stress where a bending moment is applied to a beam without the simultaneous presence of axial, shear, or torsional forces. Pure bending occurs only under a constant bending moment (M) since the shear force (V), which is equal to. , has to be equal to zero.How does bending occur?
Bending stress occurs due to the presence of tensile and compressive forces, below and above the neutral axis of a section. That is, in a simply supported beam, the area of section above the neural axis is in compression while the area below is in tension. These stresses are bending stresses.What is section modulus used for?
Section modulus is a geometric property of the cross section used for designing beams and flexural members. It does not represent anything physically. To define section modulus, it may be defined as the ratio of total moment resisted by the section to the stress in the extreme fibre which is equal to yield stress.What is the difference between moment and bending moment?
A moment is equivalent to a force multiplied by the length of the line passing through the point of reaction and that is perpendicular to the force. A bending moment is the internal reaction to a bending load. Therefore, this force system is statically equivalent to a pure moment (no resultant force).Why is bending moment important?
A bending moment (BM) is a measure of the bending effect that can occur when an external force (or moment) is applied to a structural element. This concept is important in structural engineering as it is can be used to calculate where, and how much bending may occur when forces are applied.What is bending of beam?
Introduction: Whenever a beam subjected to the external transverse loading, the beam is bent. The stress induced in beam to resist bending moment is called as bending stress. The beam is of uniform cross-section throughout its length.How do you find the bending moment of a column?
But if this isn't the case and the load isn't concentrated at the centre of the column, then the bending moment is equal to the result of multiplying the magnitude of the axial load times the distance between the centre of the column and the load.What is moment of a force?
Noun. moment of force (plural moments of force) (physics) The turning effect of a force applied to a rotational system at a distance from the axis of rotation. The moment is equal to the magnitude of the force multiplied by the perpendicular distance between its line of action and the axis of rotation.What is a clockwise moment?
Moments act about a point in a clockwise or anticlockwise direction. The point chosen could be any point on the object, but the pivot - also known as the fulcrum - is usually chosen. The anticlockwise moment acts downward on the left, and the clockwise moment acts downwards on the right.Is clockwise positive or negative?
Counterclockwise is the positive rotation direction and clockwise is the negative direction. For example, a torque that rotates an object counterclockwise is a positive torque (see figure 6 below).Can a moment be negative?
Turning moment is calculated with respect to the force applied and distance from the point about which turning is to take place. So now as we can see that both force and distance can either be positive or zero but they can never be negative so moment CANNOT BE NEGATIVE. So moment CAN BE ZERO.
