What is diffraction grating and grating element?

A diffraction grating element is an optical component with a periodic structure that splits and diffracts light into several beams travelling in different directions.

.

Thereof, what do you mean by grating and grating element?

A grating is an arrangement consisting of a large number of parallel slits of same width and separated by equal opaque spaces. (a+b) is called grating element or grating constant. It can be seen that distance between two consecutive slits is grating element.

One may also ask, what are different types of grating? There are typically two different types of diffraction grating – the ruled grating and the holographic grating. A ruled diffraction grating is produced by a ruling engine that cuts grooves into the coating on the grating substrate (typically glass coated with a thin reflective layer) using a diamond tipped tool.

Consequently, what do u mean by grating?

Definition of grating. (Entry 1 of 2) 1 : a wooden or metal lattice used to close or floor an opening. 2 : a partition, covering, or frame of parallel bars or crossbars. 3 : a system of close equidistant and parallel lines or bars ruled on a polished surface to produce spectra by diffraction.

What is grating in physics?

in physics, a diffraction grating is an optical component with a periodic structure, which splits and difracts light into several beams travelling in different directions. The emerging coloration is a form of structural coloration.

Related Question Answers

What is grating equation?

known as the grating equation. The equation states that a diffraction grating with spacing will deflect light at discrete angles ( ), dependent upon the value λ, where is the order of principal maxima. The diffracted angle, , is the output angle as measured from the surface normal of the diffraction grating.

How is grating made?

A diffraction grating is made by making many parallel scratches on the surface of a flat piece of transparent material. It is possible to put a large number of scratches per centimeter on the material, e.g., the grating to be used has 6,000 lines/cm on it. A parallel bundle of rays falls on the grating.

What is grating constant?

For a diffraction grating, the grating constant is the number of lines (or slits) per unit length (eg lines per cm). Thus, the distance between the grating lines is 1/grating constant.

What is the formula for diffraction grating?

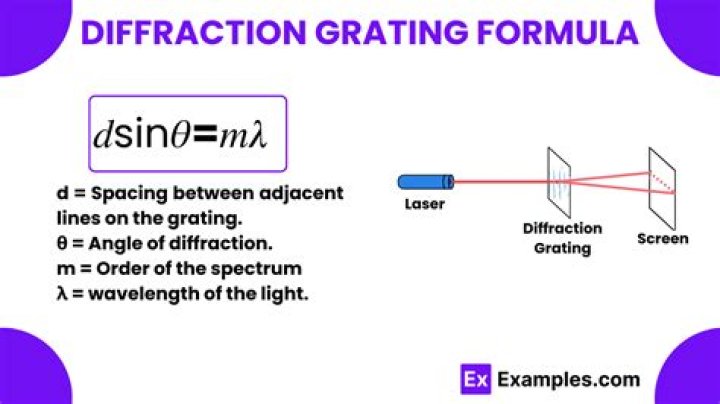

The diffraction grating formula for the principal maxima is: d sin θ_k = k λ where k = 1, 2, 3,

What are the applications of diffraction?

Uses of diffraction Diffraction gratings are used in many analytical chemistry tools, such as a spectrometer. Diffraction can also be used to look at molecules using X-ray crystallography. In X-ray crystallography, X-rays are aimed on a crystal. The crystal diffracts the X-ray and makes a diffraction pattern.

Why is diffraction grating better than a prism?

Prisms can spread light spectra into many colors for analysis. This is often good enough. A diffraction grating does very much the same thing. However, a diffraction grating is less sensitive to the color of the light and can be made to spread colors over a larger angle than a prism.

What is diffraction angle?

The diffracted angle, , is the output angle as measured from the surface normal of the grating. For a given order, different wavelengths of light will exit the grating at different angles. For white light sources, this corresponds to a continuous, angle-dependent spectrum.

What is the difference between Prism and grating?

The prism and diffraction grating are typical dispersive elements. The prism achieves dispersion due to the difference in the material refractive index according to the wavelength. However, the diffraction grating uses the difference in diffraction direction for each wavelength due to interference.

What is grating used for?

Diffraction gratings are often used in monochromators, spectrometers, lasers, wavelength division multiplexing devices, optical pulse compressing devices, and many other optical instruments.

What is the synonym of grating?

Synonyms: diffraction grating, grate. Antonyms: euphonious, euphonous. grating, gravelly, rasping, raspy, rough, scratchy(adj)

What is grating law?

THE FUNDAMENTAL LAW OF THE GRATING B~ JANET TUCKER HOWELL TUE COINCIDENCE METHOD The fundamental law of the grating is that NX = w (sin 0+ sin 4) where N is the order of the spectrum, X is the wave-length, w is the distance apart of the lines of the grating from center to center, 0 is the angle between the incident

What is grating material?

A grating is any regularly spaced collection of essentially identical, parallel, elongated elements. Gratings usually consist of a single set of elongated elements, but can consist of two sets, in which case the second set is usually perpendicular to the first (as illustrated).

What is meant by grating in physics?

Grating Physics. Diffraction gratings are used to disperse light; that is to spatially separate light of different wavelengths. They have replaced prisms in most fields of spectral analysis.

What does Gratingly mean?

adjective. irritating or unpleasant to one's feelings. (of a sound or noise) harsh, discordant, or rasping.

What is the meaning of grating voice?

grating. When something is grating, it's extremely harsh and irritating, like the grating sound of your alarm clock early on a Monday morning. As an adjective, grating is particularly good for describing unpleasant sounds, like the grating voice of someone who's nagging you.

What is first order diffraction?

Interference and diffraction are traveling wave phenomena. The first bright image to either side occurs when the difference in the pathlength of the light from adjacent slits of the grating is one wavelength, and it is called the "first order" diffraction maximum.

What is difference between interference and diffraction?

Diffraction occurs when a wave encounters an obstacle or a slit these characteristic behaviors are exhibited when a wave encounters an obstacle or a slit that is comparable in size to its wavelength, whereas Interference is the phenomenon where waves meet each other and combine additively or substractively to form

What are the two types of diffraction?

We can define two distinct types of diffraction: (a) Fresnel diffraction is produced when light from a point source meets an obstacle, the waves are spherical and the pattern observed is a fringed image of the object. (b) Fraunhofer diffraction occurs with plane wave-fronts with the object effectively at infinity.

Why does a diffraction grating separate Colours?

The diffraction grating separates light into colors as the light passes through the many fine slits of the grating. The prism separates light into colors because each color passes through the prism at a different speed and angle.
