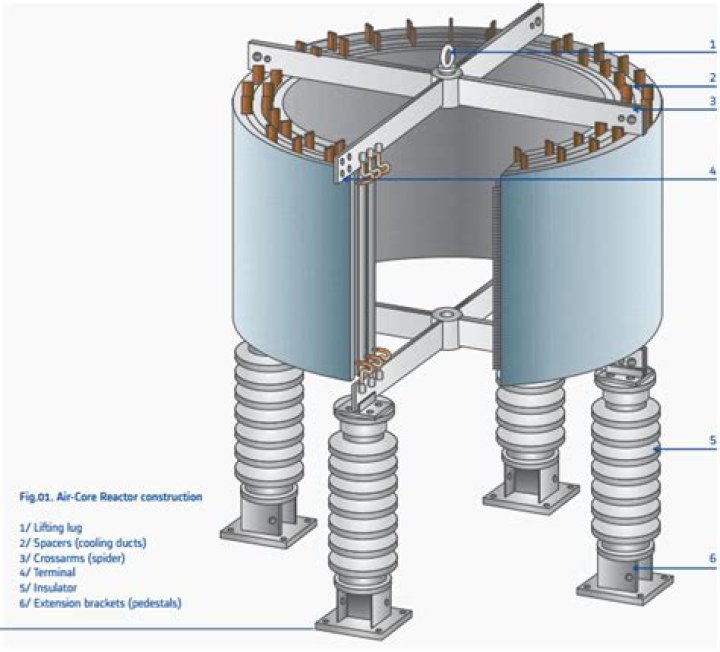

What is an air core reactor?

Air-core dry-type reactors are mainly employed in electric power transmission and distribution systems as well as in electric power systems of electrical plants. They are installed to protect these systems and to increase their efficiency.

.

In this regard, what is the purpose of a reactor in an electrical circuit?

A reactor is a coil which has large number of turns and whose ohmic resistance value is much greater. Reactors are used to limit the short circuit currents which can cause damage to the equipments of the power system. The additional reactance added in series with the system for protection, are called reactors.

Likewise, how does a series reactor work? It consists of an inductance coil, on which the principal voltage drop occurs during the short circuit. Such reactors are also used to limit the starting currents of synchronous electric motors and to compensate reactive power in order to improve the transmission capacity of power lines.

Also to know is, what is an AC reactor?

A line reactor (also referred to as a "choke") is a variable frequency drive (VFD) accessory that consists of a coil of wire that forms a magnetic field as current flows through it. When an AC reactor is placed between the power system and the drive, it is referred to as an AC line reactor.

How does a reactor limit fault current?

Functions of Current Limiting Reactor Current reactor reduced the magnitude of voltage disturbances which is caused by short circuits. It limits the fault current to flow into the healthy feeders or parts of the system, thereby avoiding the fault from spreading. This increase the chances of continuity of supply.

Related Question Answers

Why are reactors used?

Series reactors are used as current limiting reactors to increase the impedance of a system. They are also used for neutral earthing. Such reactors are also used to limit the starting currents of synchronous electric motors and to compensate reactive power in order to improve the transmission capacity of power lines.

What is difference between reactor and inductor?

Reactor An electromagnetic device, the primary purpose of which is to introduce inductive reactance into a circuit. Inductor A device consisting of one or more associated windings, with or without a magnetic core, for introducing inductance into an electric circuit.

What is the difference between a reactor and a transformer?

Although, the shape and size of both reactors and transformers are almost same. The basic difference between them is that, the work of reactor is to handle and control current fluctuations and on the other hand, power transformers are used for the transmission and distribution purposes.

What is the main purpose of shunt reactor?

A shunt reactor is an absorber of reactive power, thus increasing the energy efficiency of the system. It is the most compact device commonly used for reactive power compensation in long high-voltage transmission lines and in cable systems.

What is the function of shunt reactor?

Shunt reactors are mainly used in transmission networks. Their function is to consume the excess reactive power generated by overhead lines under low-load conditions, and thereby stabilize the system voltage. They are quite often switched in and out on daily basis, following the load situation in the system.

What are the functions of current limiting reactors?

The main motive of using current limiting reactors is to reduce short-circuit currents so that circuit breakers with lower short circuit breaking capacity can be used. They can also be used to protect other system components from high current levels and to limit the inrush current when starting a large motor.

How do you limit short circuit current?

In order to limit the short-circuit current at the same voltage level, the only method is to increase the inductive reactance seen at the fault location. This can be done by either increasing the inductance of the circuit, or by removing parts of the circuit from the fault path.

How can fault current be reduced?

Fault-level-reduction techniques — for example, using high-impedance transformers, using reactors or splitting the network to reduce the number of in-feeds — have been available for many years.

What is AC choke?

In electronics, a choke is an inductor used to block higher-frequency while passing direct current (DC) and lower-frequencies of alternating current (AC) in an electrical circuit. The name comes from blocking—"choking"—high frequencies while passing low frequencies.

When would you use a line reactor?

3% impedance line reactors should be used to reduce power line transient voltages caused by capacitor switching, line notching, DC Bus over-voltage tripping and inverter over-current and over-voltage conditions. They improve the true input power factor and reduce cross-talk between drives.

Does VFD improve power factor?

A variable frequency drive (VFD) will improve the system power factor to which it is connected, primarily because the motor reactive current is supplied by the DC bus, rather than the supply system. This will only improve the displacement power factor.

What is a 3 phase line reactor?

A 3-phase Line Reactor is a set of three (3) coils (also known as windings, chokes or inductors) in one assembly. It is a series device, which means it is connected in the supply line such that all line current flows through the reactor, as shown below. Line Reactors are rated by % impedance, voltage and current.

What is a DC reactor?

DC line reactor is used to limit AC component on DC to a specified value. Filter reactor, also called DC smoothing reactor, is used at DC side of converter. The current in line reactor is direct current with AC component. It is used to limit the AC component on direct current to one specified value.

What is a DC link reactor?

DC link reactor are the connectors between the diodes and the DC bus and can be slightly effective at removing harmonics than AC line reactors depending on the order of harmonic being observed.

How does a reactor reduce harmonics?

By inserting inductive reactance into the circuit, which is a high impedance to harmonic frequencies, line reactors reduce the amount of harmonics produced by a VFD system. For harmonic reduction purposes, you typically apply 5% impedance line reactors to the input of motor drives 20 hp and higher.

When would you use a line reactor with a VFD?

Input (line) reactors should be used in these circumstances:

1. The input line power is prone to have disturbances such as surges, spikes, transients, etc.
2. The supply line power is very stiff (greater than 10 times the kVA rating of the connected VFD).
3. Where harmonic distortion is a concern. (

Why is neutral earthing needed?

Neutral earthing resistors are used to limit the fault current in transformers When a phase to earth occurs, the fault current is limited only by the soil resistance. Low voltage networks are generally solidly earthed and resistive neutral earthing is generally only applied to MV and HV lines.

What is bus reactor in electrical?

A bus reactor is a type of air core inductor, or in some cases, oil filled, connected between two buses or two sections of the same bus in order to limit the voltage transients on either bus. It is installed in a bus to maintain system voltage when the load of the bus changes.

What is reactance physics?

In electric and electronic systems, reactance is the opposition of a circuit element to the flow of current due to that element's inductance or capacitance. As frequency goes up, inductive reactance also goes up and capacitive reactance goes down.
