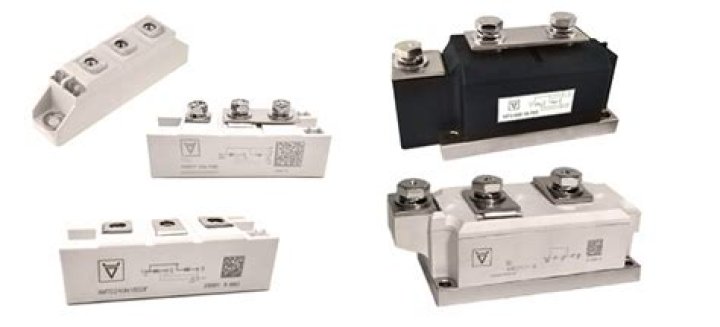

Power Thyristors Thyristor products are also called a SCR (Silicon Controlled Rectifiers). A SCR Module is used to control and rectify current in only one direction. When a current/voltage pulse is applied to the gate of the SCR, it triggers on and starts to conduct..
Furthermore, what is the function of a thyristor?
In its most basic form, a thyristor has three terminals: anode (positive terminal), cathode (negative terminal), and gate (control terminal). The gate controls the flow of current between the anode and cathode. The primary function of a thyristor is to control electric power and current by acting as a switch.
Additionally, what do you mean by thyristor? A thyristor is a four-layer semiconductor device, consisting of alternating P type and N type materials (PNPN). The most common type of thyristor is the silicon-controlled rectifier (SCR). When the cathode is negatively charged relative to the anode, no current flows until a pulse is applied to the gate.
Just so, what is thyristor and its working?
Thyristors are semiconductor devices that can operate only in the switching mode. Thyristor are current operated devices, a small Gate current controls a larger Anode current. The thyristor acts like a rectifying diode once it is triggered “ON”. Anode current must be greater than holding current to maintain conduction.
What is thyristor and its types?
Thyristors are 2 pin to 4 pin semiconductor devices that act like switches. For example a 2 pin thyristor only conducts when the voltage across its pins exceeds the breakdown voltage of the device. Basic types of thyristors are: SCR, SCS, Triac, Four-layer diode and Diac.
Related Question Answers
Where are thyristors used?
Thyristors are mainly used where high currents and voltages are involved, and are often used to control alternating currents, where the change of polarity of the current causes the device to switch off automatically, referred to as "zero cross" operation.How do thyristors work?
How a thyristor latches on - With no current flowing into the gate, the thyristor is switched off and no current flows between the anode and the cathode.
- When a current flows into the gate, it effectively flows into the base (input) of the lower (n-p-n) transistor, turning it on.
How many types of thyristors are there?
Out of these eleven types, the silicon controlled thyristors also known as SCRs are the most widely used in many electrical applications. It has the same four layered structure as a common thyristor and the current travels from anode to cathode when the thyristor is properly biased.What is the function of IGBT?
An insulated-gate bipolar transistor (IGBT) is a three-terminal power semiconductor device primarily used as an electronic switch which, as it was developed, came to combine high efficiency and fast switching.What is the symbol for a thyristor?
The silicon controlled rectifier, SCR or thyristor symbol used for circuit diagrams or circuit seeks to emphasis its rectifier characteristics while also showing the control gate. As a result the thyristor symbol shows the traditional diode symbol with a control gate entering near the junction.Why thyristor is called charge controlled device?
Why thyristor is considered as Charge controlled device? Higher the magnitude of the gate current pulse, lesser is the time required to inject the charge and turning on the scr. By controlling the amount of charge we can control the turning on time of the scr.What is meant by Ujt?
B2, B1, emitter. Electronic symbol. A unijunction transistor (UJT) is a three-lead electronic semiconductor device with only one junction that acts exclusively as an electrically controlled switch. The UJT is not used as a linear amplifier.How is thyristor measured?
Testing SCR using a multimeter. Now put the multimeter selector switch in a high resistance position. Connect the positive lead of multimeter to the anode of SCR and negative lead to the cathode. The multimeter will show an open circuit. Now reverse the connections and the multimeter will again show an open circuit.What do u mean by diode?
A diode is a specialized electronic component with two electrodes called the anode and the cathode. Most diodes are made with semiconductor materials such as silicon, germanium, or selenium. The fundamental property of a diode is its tendency to conduct electric current in only one direction.Is IGBT a thyristor?
SCR is a silicon control rectifier and igbt is a insulated gate bipolar transistor. SCR is the thyristor family like DIAC and TRIAC but IGBT is a combination of BJT (bipolar junction transistor ) and FET (field effect transistor ). Scr and igbt both are three terminal device .How many terminals are in DIAC?
two terminals
What is thyristor control?
Thyristor power controllers (SCR power controllers) control power or voltage supplied to a load. Typical applications are generally found where power needs to be varied and ultimately converted into thermal energy. For example, the controllers are used in industrial furnace construction or in plastic processing.What are SCR used for?
SCRs are mainly used in electronic devices that require control of high voltage and power. This makes them applicable in medium and high AC power operations such as motor control function. An SCR conducts when a gate pulse is applied to it, just like a diode.What is snubber circuit?
Snubbers are energy-absorbing circuits used to suppress the voltage spikes caused by the circuit's inductance when a switch, electrical or mechanical, opens. The most common snubber circuit is a capacitor and resistor connected in series across the switch (transistor).Why SCR is current controlled device?
The thyristor is a current-controlled device because that's how it works - a current is used to switch it into conduction and latching. A transistor isn't a voltage-controlled device, at least not a bipolar one.What is blocking voltage?
What is the blocking voltage? Blocking voltage, BVDSS, is the maximum voltage that can be applied to the MOSFET. When driving an inductive load, this includes the applied voltage plus any inductively induced voltage. With inductive loads, the voltage across the MOSFET can actually be twice the applied voltage.How is voltage defined?
We define voltage as the amount of potential energy between two points on a circuit. One point has more charge than another. This difference in charge between the two points is called voltage.What is difference between diode and thyristor?
A diode is a 2 terminal device namely anode and cathode. But a thyristor is a 3 terminal device, out of the 3 terminal, 2 are anode and cathode while the other is gate which is used to provide external triggering to the circuit. The power handling ability of thyristors is comparatively better than the diodes.What is the difference between thyristor and transistor?
The crucial difference between transistor and thyristor is that a transistor is a 3-layer device that requires regular current pulse in order to ensure conduction. On the contrary, a thyristor is a 4-layer device that needs an only single triggering pulse to initiate and maintain conduction.
