What is a roof valley flashing?

An open valley relies on metal flashing for protection. That flashing is left exposed, so the roof has visible lines of metal running down the valley. Some homeowners do not like the look of open valleys, while others feel the metal accentuates the roof's shape, particularly if copper or painted flashing is used.

.

Similarly, it is asked, do roof valleys need flashing?

Closed valleys aren't required to have metal flashing, but they should have additional underlayment lining the valley, preferably a couple layers of roll roofing. You can usually see whether this has been done by looking carefully at the bottom edge of the valley.

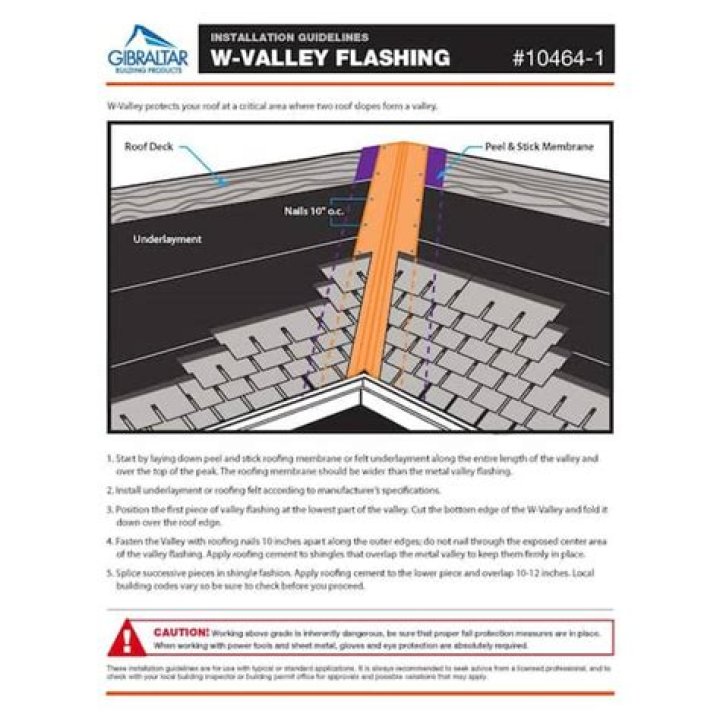

Furthermore, what is valley flashing? Overview. W-Valley Flashing protects the critical area of your roof where two slopes come together to form a valley. When properly installed, W-Valley Flashing will reliably channel run-off water down the roof and into the gutter.

Besides, what is the flashing on a roof?

Roof flashing is a thin material, usually galvanized steel, that professional roofers use to direct water away from critical areas of the roof, wherever the roof plane meets a vertical surface like a wall or a dormer. Flashing is installed to surround roof features, such as vents, chimneys and skylights.

What is the valley of a roof?

The place where two roof surfaces intersect is called a valley. This is one of the most common areas for a roof to leak. Non-permeable materials such as metal sheets or roof rolls are placed over these joins to seal out moisture. Asphalt shingles and metal flashing on a damaged Canadian roof.

Related Question Answers

How do you fix a flashing roof?

How to Repair Roof Flashing. Small holes or corroded spots in flashing can be easily repaired. Plug pinholes with roofing cement, and patch holes up to about 3/4 inch in diameter with a patch from the same material as the flashing. First roughen the area around the hole with a wire brush or sandpaper, and then clean it

Does roof flashing go under shingles?

This is true no matter what type of roof-covering material is installed. Flashing should overlap the roof-covering material, but on asphalt shingle roofs, for aesthetic reasons, the part of the headwall flashing that extends down over asphalt shingles is often covered with a course of shingle tabs.

Does roofing felt go under flashing?

1 Answer. It depends on where the drip edge is. At the side, or gabels, of a roof, the drip edge goes over the roofing felt. At the bottom of the roof, the drip edge goes under the roofing felt.

What does step flashing look like?

Step flashing can be made with aluminum, copper, lead, galvanized steel, or stainless steel, but most commonly it is aluminum or copper. Small L-shape flashing pieces must be woven into the shingles as you work your way up the roof. The flashing integrates the roof cladding into the wall cladding to keep water out.

Should shingles hang over drip edge?

The edge of the shingles should hang over a roof between an inch and an inch and a half — or between a half inch and three-quarters of an inch if drip edge flashing is installed. Too much overhang and the shingles could blow off in high winds; too little can allow water to seep into rake or fascia boards.

How do you install valley flashing on a metal roof?

With a clean valley, you can lay down some peel and stick roofing membrane . Fold the top over the roof ridge and cut the bottom along the drip edge metal. Install synthetic roofing underlayment or felt paper according to manufacturer specifications and then install the first piece of valley flashing.

Do all roofs have flashing?

While some roofs may not have walls or valleys (a hip style roof doesn't have either!) that need to be flashed, all roofs can benefit from drip edge at the eaves.

Do roofers replace flashing?

Why don't roofing shingle manufacturer's recommend re-using roof flashing when replacing a roof? The short answer is, “because the nails don't always go back into the same holes they were in originally”. Practically, however, when you're replacing a 15-20 year old roof, you don't know: 1.

What color should Roof Flashing be?

The flashing will come in either white or brown. If your trim is either of these colors that is fine. If your trim is white and the flashing is brown you MUST paint the flashing white otherwise the fascia will look too narrow to support the roof.

How much does it cost to fix roof flashing?

If you need to fix the flashing that seals your skylight to your roof, expect to pay an extra $300 to $500. And if you need to fix the flashing around your chimney, expect to pay between $200 and $500. Get roof repair cost quotes from at least three roofers before you make a hiring decision.

How long should roof flashing last?

fifteen to twenty years

What is the difference between flashing and step flashing?

The waterproof membrane laid down before the shingles forms the first layer, called the base flashing. This membrane attaches up the side of the wall as well. One side of the L-shape lays under the shingle, and the other side attaches to the side of the wall. This layer is called the step flashing.

What are the different types of flashing?

Types of flashing Sill flashing: Concealed under windows or door thresholds to prevent water ingress. Channel flashing: U-shaped channel used where the edge of a tile roof meets a wall. Through wall flashing: Directs water to weep holes by spanning the thickness of the wall. Cap flashing: Above windows and doors.

Does tar paper go over or under drip edge?

The drip edge should be over the paper at the eaves, and under along the rake. mroberson: Its a TRAP! Back in my construction days, I learned that you place the tar paper OVER the drip edge on the eaves so if moisture gets through the shingles, it does not get under the drip edge.

Does flashing go over or under tar paper?

Installing roof drip edge flashing properly The best way is to install the roof drip edge only along the eaves first, then place ice-and-water barrier (in the snowbelt) or felt paper (underlayment) over the drip edge. This lets any water that gets on the roof run down the underlayment and over the drip edge.

How much step flashing do I need?

Step flashing needs to turn up a minimum of three inches up the sidewall. The flashing material should be 4 inches by 7 inches in length when it lies on the roof deck. The 7-inch length ensures a 2-inch headlap on each course. Once complete, the housewrap should overlap the step flashing that's applied to the wall.

How wide should Flashing be?

The flashing shall be a minimum of 4 inches (102 mm) high and 4 inches (102 mm) wide. At the end of the vertical sidewall the step flashing shall be turned out in a manner that directs water away from the wall and onto the roof and/or gutter.”

What does a roof drip edge look like?

Drip edges are metal sheets, usually shaped like an “L,” installed at the edge of the roof. Also called drip edge flashing or D-metal, they serve a vital function by directing water away from the fascia and into the gutter.

Are metal valleys better?

Metal valleys are better than a woven valley in my opinion (and probably most others). They look better and last longer.
