What is a drop axle on truck?

A dropped axle is the axle of a vehicle that is bent upwards towards the ends, i.e. the centre is 'dropped'.

Also question is, what is a tag axle on a truck?

A lift axle, or tag axle, as it is often called, is a heavy truck axle that is designed to be lifted off the road's surface when not needed. A lift axle can be mounted on the truck, the trailer or both and is commonly found on tanker-style trucks as well as trucks used to haul over-sized loads.

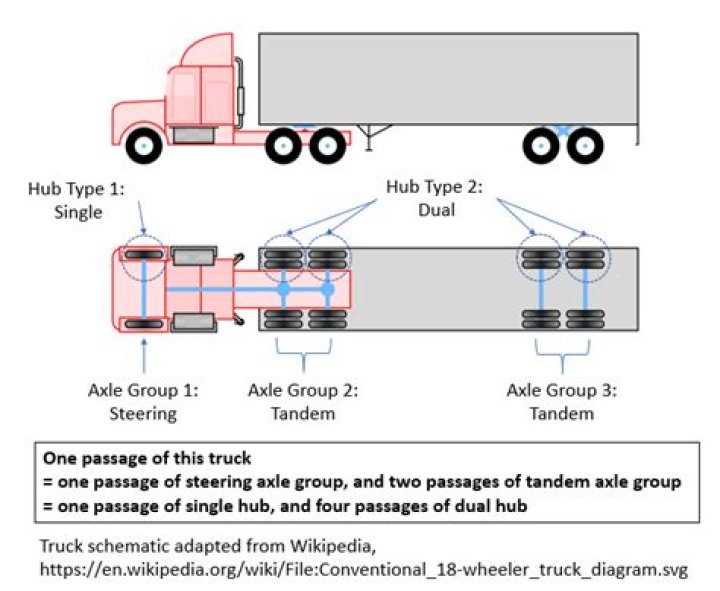

which axle is the drive axle on a semi? The three axle truck tractor most commonly seen on US highways Has two rear drive axles and in normal conditions, the front drive axle is providing the force to drive the truck. In fact, only one wheel of that axle is actually moving the truck and trailer down the road.

Similarly one may ask, how much does a drop axle weight?

the axle assembly weights about 1500 lbs dead weight if your not going to be using it.

Why do some trucks have wheels that don't touch the ground?

They do touch the ground, once they are heavy enough, they need to be on the ground to relieve stress on the other axles. They are then raised when going around corners/bends so that they don't drag. They are like the raised axles on a transport truck.

What are the different types of axles?

Types of Axles

? An axle is a central shaft for a rotating wheel or gear.
REAR AXLE • Full Floating • Semi Floating • Three Quarter Floating FRONT AXLE • Dead Front Axle • Line Front Axle STUB AXLE • Elliot • Reversed Elliot • Lamoine • Reversed Lamoine.

What is the purpose of a drop axle?

A dropped axle is the axle of a vehicle that is bent upwards towards the ends, i.e. the centre is 'dropped'. Their ultimate development was in the float or milk float, where a dropped axle was used to give a low load bed for easy loading of churns or similar unstable liquid cargo.

What are the benefits of a tag axle?

A tag axle is a third axle located behind the rear drive axle of a motor home. It is a non-drive axle with one or two tires on each side. The main purpose of a tag axle is to increase the support of the chassis at the rear of the vehicle, allowing for greater carrying capacity and shock resistance.

How does a tag axle work?

A tag axle mounted under the rear of a truck body shortens a truck's wheelbase and makes it more maneuverable. But that tag must be down when a dump bed is raised to give the vehicle proper stability. Some tag axles are made for this but some are not.

Why is it called a tag axle?

Lift axles, as they are often called in the expediting industry, are commonly used on expediter straight trucks. If it is located in front of the drive axle, it is a pusher axle. If it is behind the drive axle, it is a tag axle. Though "tag axle" is informally used to refer to the lift axle in either location.

Can you jack up a truck by the axle?

Yes, you can jack up the truck anywhere on the axle.

How much PSI is in a tag axle?

We have a couple of hundred pounds over 4,000 on each of the drive axle tires and a little under 4,000 pounds on both tag tires. If you graph the Michelin air pressure vs loading numbers, that loading puts the recommended pressure in the 60+ psi range. But the published minimum air pressure on the tires is 80 psi.

What is the max weight you can have on a drive axle?

20,000 pounds

How do I determine my axle weight?

How to Calculate Axle Weight

Add the total weight of the load you will be carrying to the total trailer weight.
Divide the total weight of the load and trailer by the total number of tandem axles. Include the load bearing axle in your count.
Write down the total weight of your tractor or pickup.

How many tons can a single axle dump truck carry?

Typically, larger dump trucks can carry about 28,000 pounds or about 14 tons. On average, smaller dump trucks can transport around 13,000 to 15,000 pounds or 6.5 to 7.5 tons.

What is the legal weight for a 53 foot trailer?

53-foot trailers carrying non-divisible loads must apply for a New York City Permit. Maximum weight limit for vehicles is 80,000 pounds or less, depending upon axle spacing.

How do I adjust my axle weight?

By sliding the trailer tandems forward, you will put more weight on the trailer tandems and take weight off the tractor's drive axles. Conversely, by sliding the trailer tandems toward the rear of the trailer, you will take weight off the trailer tandems and put more weight onto the tractor's drive axles.

How can I lose weight from my steering axle?

If you slide the 5th wheel toward the nose of the tractor you will increase the weight on the steer axle and take weight off the drive axles. If you move the 5th wheel toward the rear of the tractor, you will increase the weight on the drive axles and decrease the weight on the steer axle.

What does axle weight mean?

The gross axle weight rating (GAWR) is the maximum distributed weight that may be supported by an axle of a road vehicle. Typically, GAWR is followed by either the letters FR or RR, which indicate front or rear axles respectively.

How do you take a truck axle out?

Truck Weight 101

First, stop with only your steer axle on the platform to get your steer axle weight.
Continue until both the steer axle and the drive tandems are on the platform.
Subtract the steer axle weight from the tractor weight (so 2 minus 1), and you have the weight for your drives.

Why do motorhomes have tag axles?

The tag axle also helps in reducing the rear overhang of the motorhome. This is because the addition of a tag axle increases the distance between the motor and drive axle. The shallower angle thus created allows for a more level connection between the drive shaft and drive axle, to avoid too much stress on the U-joint.

Do tag axles have brakes?

Yes, the tag axle adds braking and tire weight carrying capacity.

How many axles does a Class A motorhome have?

Re: one or two axles Our motorhome has one front axle, one rear drive axle, and one rear tag axle. In addition the car has two axles so we usually pay for five axles at toll booths.

What is a tandem axle?

Tandem Axle Trailers: Like the name implies, a tandem axle trailer has two sets of axles – one right behind the other. The extra tires allow the trailer to handle more weight and to be more stable at higher speeds and highway conditions. Higher payload capacity means more room for whatever you are hauling.
