What does the objectives do on a microscope?
By Sophia Carter •

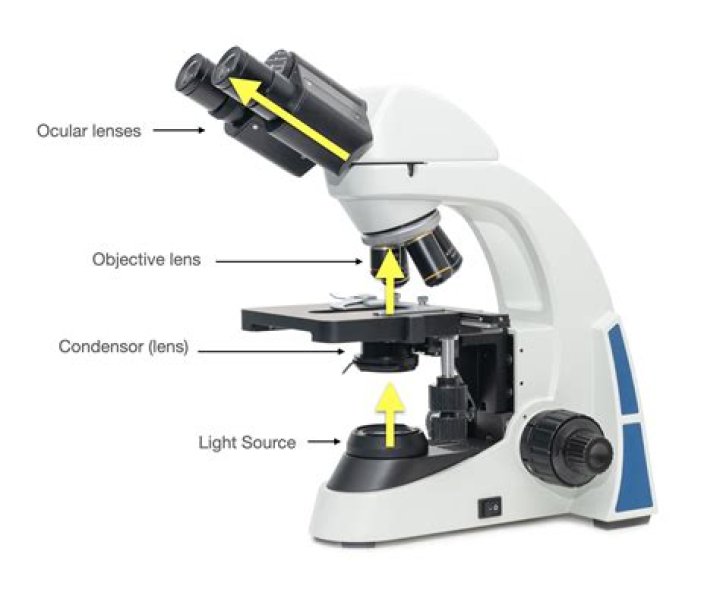

In microscopy, the objective lenses are the optical elements closest to the specimen. The objective lens gathers light from the specimen, which is focused to produce the real image that is seen on the ocular lens. Objective lenses are the most complex part of the microscope due to their multi-element design.
.
Thereof, what do you observe with the objectives of the microscope answer?
Answer: What we observe with the objectives of the microscope is the specimen under inspection or investigation. The specimen could be blood samples, a strip of onion, a mosquito, an ant, or even a microchip. You can choose whatever specimen you would like to observe under a microscope.
Additionally, what is the shortest objective called? After the light has passed through the specimen, it enters the objective lens (often called "objective" for short). The shortest of the three objectives is the scanning-power objective lens (N), and has a power of 4X.
Besides, what is the purpose of the stage on a microscope?
All microscopes are designed to include a stage where the specimen (usually mounted onto a glass slide) is placed for observation. Stages are often equipped with a mechanical device that holds the specimen slide in place and can smoothly translate the slide back and forth as well as from side to side.
How do you use a microscope?
How to Use a Microscope
- Turn the revolving turret (2) so that the lowest power objective lens (eg.
- Place the microscope slide on the stage (6) and fasten it with the stage clips.
- Look at the objective lens (3) and the stage from the side and turn the focus knob (4) so the stage moves upward.
What are the three objectives of a microscope?
Objective Lenses: Usually you will find 3 or 4 objective lenses on a microscope. They almost always consist of 4x, 10x, 40x and 100x powers. When coupled with a 10x (most common) eyepiece lens, we get total magnification of 40x (4x times 10x), 100x, 400x, and 1000x.What is the field of view on a microscope?
When you look through the lens of a microscope you see a circular area, the diameter of which is known as the field of view. The field number is the diameter of the image area when seen under the eyepiece. This is often written on the side of the eyepiece, as shown on the right.How do you calculate total magnification?
To figure the total magnification of an image that you are viewing through the microscope is really quite simple. To get the total magnification take the power of the objective (4X, 10X, 40x) and multiply by the power of the eyepiece, usually 10X.How many times does the eyepiece magnify the image?
The total angular magnification of a microscope image is then simply calculated by multiplying the eyepiece power by the objective power. For example, a 10× eyepiece with a 40× objective will magnify the image 400 times.Are microscope objectives interchangeable?
Infinity-corrected and finite-tube length microscope objectives are not interchangeable and must be matched not only to a specific type of microscope, but often to a particular microscope from a single manufacturer. Objectives usually contain an inscription denoting the tube focal length as will be discussed.What is the magnification of the ocular lens?
The magnification of the ocular lens of a microscope is x10 and the magnification of the objective lens for low, medium, and high power are 4X, 10X, and 40X, respectively. The measured dFOV under medium power is 2.6mm.What are the 12 parts of a microscope?
Read on to find out more about microscope parts and how to use them.- The Eyepiece Lens. •••
- The Eyepiece Tube. •••
- The Microscope Arm. •••
- The Microscope Base. •••
- The Microscope Illuminator. •••
- Stage and Stage Clips. •••
- The Microscope Nosepiece. •••
- The Objective Lenses. •••
What makes a good microscope?
About magnification: Most educational-quality microscopes have a 10x (10-power magnification) eyepiece and three objectives of 4x, 10x and 40x to provide magnification levels of 40x, 100x and 400x. Magnification of 400x is the minimum needed for studying cells and cell structure.What is the purpose of the coverslip?
This smaller sheet of glass, called a cover slip or cover glass, is usually between 18 and 25 mm on a side. The cover glass serves two purposes: (1) it protects the microscope's objective lens from contacting the specimen, and (2) it creates an even thickness (in wet mounts) for viewing.Why should you master the parts and functions of a microscope?
A good microscope allows us to magnify and observe very small specimens such as bacteria as well as cells and their various organelles. All of the parts of the microscope are important but without one aspect of a microscope it will be unable to carry out its basic function.What is the purpose of adding immersion oil?
In light microscopy, oil immersion is a technique used to increase the resolving power of a microscope. This is achieved by immersing both the objective lens and the specimen in a transparent oil of high refractive index, thereby increasing the numerical aperture of the objective lens.What are the types of microscope?
Different Kinds of Microscopes & Their Uses- Simple Microscope. The simple microscope is generally considered to be the first microscope.
- Compound Microscope.
- Stereo Microscope.
- Confocal Microscope.
- Scanning Electron Microscope (SEM)
- Transmission Electron Microscope (TEM)
