How is induction cooker circuit?
How is induction cooker circuit?

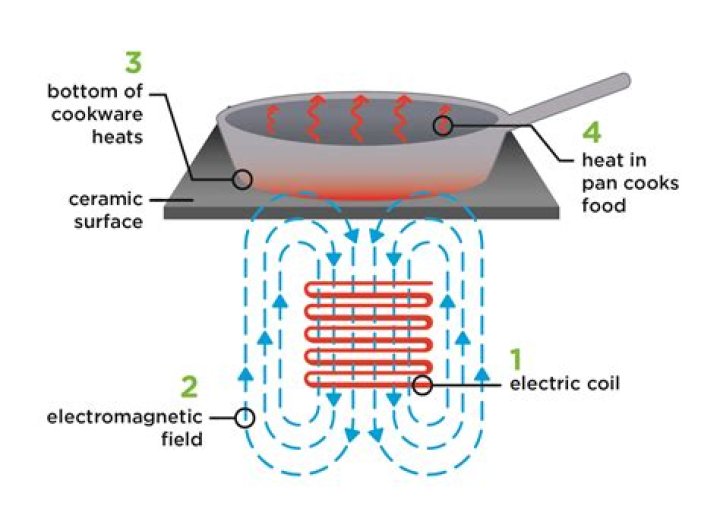

In an induction cooker, a coil of copper wire is placed underneath the cooking pot. An alternating electric current flows through the coil, which produces an oscillating magnetic field. This field induces an electric current in the pot. Current flowing in the metal pot produces resistive heating which heats the food.
Does induction hob need own circuit?
12 Answers from MyBuilder Electricians Yes, it can go on the same circuit, you can have up to 15kw in a domestic situation on a 6mm cable and 32 amp mcb after applying diversity.
What size breaker do I need for induction cooktop?
50-amp
Induction cooktops require a dedicated, grounded 240-volt circuit protected with 40- or 50-amp breakers that terminates in an approved junction box mounted below the counter on the cabinet back or on the wall behind it.
What amp fuse do I need for an induction hob?
Therefore, you would need a fuse that can carry 30.8 amps or more to be able to power the induction hob. The closest fuse would be a 32 amp fuse.
What is IGBT in induction cooker?
IGBT – Induction Cooking. This Insulated Gate Bipolar Transistor (IGBT) features a robust and cost effective Field Stop (FS) Trench construction, provides and superior performance in demanding switching applications, and offers low on−state voltage with minimal switching loss.
Can you just plug in an electric cooker?
Hi there,generally integrated cookers come complete with plug tops and as suggested just plug into a socket outlet, it is generally the hob that would need its own supply as it has a larger load capacity so as safety goes unless you have a double oven then you should be fine, i hope this helps.
Can electric oven and induction cooktop be on same circuit?
One common question is whether a separate cooktop and wall oven can be installed on the same circuit. The answer, according to the 2008 National Electric Code, is YES, provided certain conditions are met in the installation.
Can I use a 50 amp breaker for a 40 amp stove?
In general, no. Installing a 50A breaker on wiring only designed to support 40A is dangerous and can result in a house fire. 40A circuits need #8 copper wire, whereas 50A circuits need #6 copper.
How many amps does a portable induction cooktop use?
it draws 1800 watts at highest setting, which translates to about 15-16 amps. other nuwave induction cooktops draw about 1300 to 1500 watts and for most homes that is probably what you want.
What power supply is required for a induction hob?
In the United States, an induction cooktop requires a dedicated, grounded 240-volt circuit protected with a 40-50 amp breakers that terminate in an approved junction box mounted near the cooktop. This could be either below the counter near the back of the cabinet or on the wall behind it.
How many amps does an electric hob use?
Most hobs are 6 to 7Kw and require a 32amp circuit.
