How does a programmable unijunction transistor work?

How does a programmable unijunction transistor work?

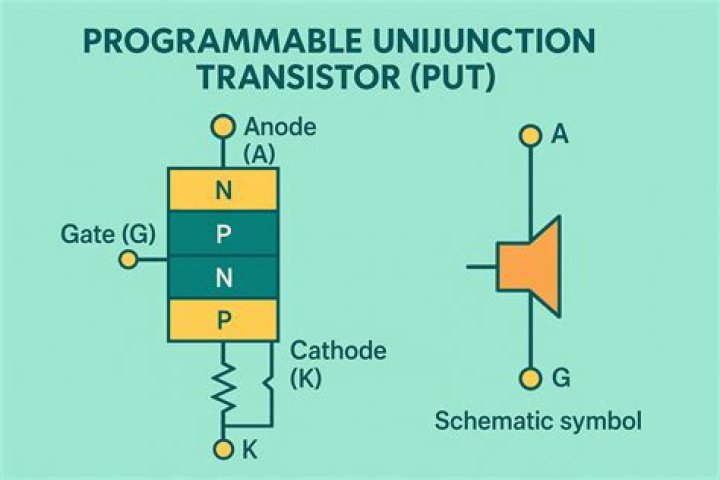

Programmable unijunction transistors (PUT) are three-terminal thyristors that are triggered into conduction when the voltage at the anode exceeds the voltage at the gate. The PUT is similar to the unijunction transistor (UJT), but its intrinsic standoff ratio can be set by two external resistors.

What is the main application of unijunction transistor?

The most common application of a unijunction transistor is as a triggering device for SCR’s and Triacs but other UJT applications include sawtoothed generators, simple oscillators, phase control, and timing circuits. The simplest of all UJT circuits is the Relaxation Oscillator producing non-sinusoidal waveforms.

How do you test a unijunction transistor?

UJT (Uni junction transistor) can be easily tested by using a digital multimeter….Testing a UJT

1. Measuring the resistance between B1 and B2 terminals. Set your digital multimeter in resistance mode.
2. Reverse biasing the emitter junction. Set the digital multimeter in resistance mode.
3. Forward biasing the emitter junction.

What is the importance of programmable unijunction transistor?

In a UJT, the parameters like Vp, η etc are fixed and we cannot change it. The main application of programmable UJT are relaxation oscillators , thyristor firing, pulse circuits and timing circuits. ON Semiconductor® is the only manufacturer of PUT now.

How do you turn on programmable unijunction transistor?

PUT Oscillator Operation

1. Resistors R1 and R2 set up a bias voltage on the gate terminal of the PUT.
2. When the supply is connected, the capacitor charges via RV1.
3. When the anode voltage (the voltage across the capacitor) reaches a value 0.6 V above the gate voltage, the PUT turns on and latches on.

What are the terminals of a unijunction transistor?

The UJT has three terminals: an emitter (E) and two bases (B1 and B2) and so is sometimes known a “double-base diode”. The base is formed by a lightly doped n-type bar of silicon. Two ohmic contacts B1 and B2 are attached at its ends.

How do you know if a transistor is good or bad?

Hook the positive lead from the multimeter to the to the BASE (B) of the transistor. Hook the negative meter lead to the EMITTER (E) of the transistor. For an good NPN transistor, the meter should show a voltage drop between 0.45V and 0.9V. If you are testing PNP transistor, you should see “OL” (Over Limit).

Where are MOSFETs used?

Power MOSFETs are commonly used in automotive electronics, particularly as switching devices in electronic control units, and as power converters in modern electric vehicles. The insulated-gate bipolar transistor (IGBT), a hybrid MOS-bipolar transistor, is also used for a wide variety of applications.

What does the term programmable mean as used in programmable unijunction transistor?

Yet some authors call it a programmable UJT just because its characteristics and parameters have much similarity to that of the unijunction transistor. It is called programmable because the parameters like intrinsic standoff ratio (η), peak voltage(Vp) etc can be programmed with the help of two external resistors.

How do you identify unijunction transistor terminals?

Unijunction Transistor Summary The UJT has three terminals one labelled Emitter (E) and two Bases (B1 and B2). Two ohmic contacts B1 and B2 are attached at each ends of the semiconductor channel with the resistance between B1 and B2, when the emitter is open circuited being called the interbase resistance, RBB.

How many terminals does a programmable unijunction transistor have?

6. How many terminals does a programmable unijunction transistor (PUT) have?…Exercise :: PNPN – General Questions.
