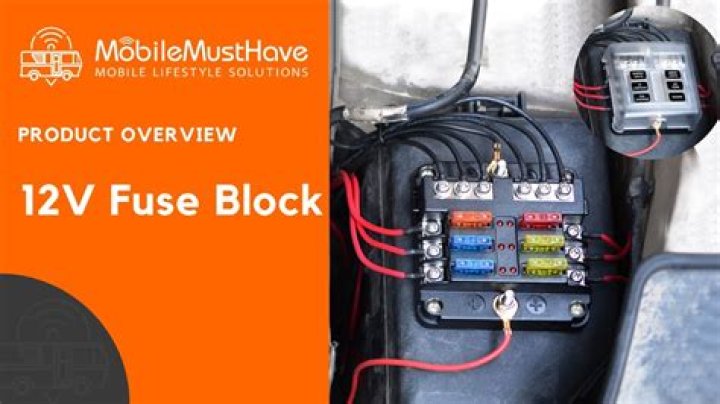

How do you wire a fuse block on a boat?
By Daniel Moore •
Each electrical circuit on your boat should begin and end at the fuse box. For each circuit, install ring terminals on the ends of the wires. Attach the positive wire at the terminal near the appropriate fuse; attach the negative wire to the negative busbar.
.
Also question is, how do you wire a boat?
- The Electrical Source: a Battery. In a boat, electricity is stored in one or more batteries.
- Main Battery Switch.
- Battery Switch Bypass Loads (Bilge Pump, etc)
- Get the Source to the Boat's Helm.
- Install Terminal Block as Breakout Point.
- Run Load Wiring to the Terminal Block and Buss Bar.
Similarly, how does a terminal block work? Terminal blocks are connectors that terminate a single wire and connect it to a circuit or other system. Another terminal type are terminal blocks with screws for holding an inserted cable on one end and a plug on the other end so that the block can be inserted into a female connector (this allows for hot-swapping).
Consequently, what is the difference between a busbar and a terminal block?
Unlike a terminal block, a bus bar gangs all the studs or terminals together into one 'bus'. This makes one electrical 'node' of the same potential (voltage level). A bus bar is designed to make a solid connection point from one source to many branch circuits. Or many branch circuits back to a single source.
What size wire should I use to wire my boat?
The ABYC recommends wire conductors of at least 16-AWG (gauge) for lights and other similar equipment. That's minimum, and heavier gauge isn't much more expensive — and generally no more trouble to install. We suggest you use 12- or 14-AWG to minimize your voltage drops, or more if the manufacturer suggests it.
Related Question AnswersHow do you wire multiple lights to one switch?
You run another 12/2 or 14/2 cable from the top of the switch box to the first light. You connect the black wire to the switch. You connect the 2 white wires together, and then connect the other terminal on the switch to the black wire of the cable leaving this junction box towards the first light.How do you wire a light?
Wrap the copper or silver ground wires from the light fixture around the ground screw. Then, connect it to the supply ground wire of the junction box with a wire connector. Connect the black or red current wires and the white neutral wires. Then, push the connected wires into the junction box.Do LED lights need a fuse?
Hi Nick, yes you should fuse LEDS or any other piece of gear attached to the battery. The purpose of the fuse is to protect the wiring not the attachment. As a general rule of thumb the current rating of wire is about 10 times the area.How many watts can a 5 amp fuse take?
Multiply the voltage by the amps and this will give you the maximum number of Watts you can place on the circuit. If your lighting circuit at home is protected by a typical 5 amp fuse you can multiply this by the voltage to get 1150 Watts.Do you put fuse on positive or negative wire?
Putting the fuse on the negative wire protects only the equipment, fuse in positive lead protects the equipment and the voltage source. If the black wire gets skined and shorts to ground,.Can I use a 240v fuse in a 12v circuit?
Re: Is a 12v fuse the same as 240v 5A? Yes, it will be fine. Fuses sometimes have a maximum voltage rating that they can safely interrupt, but that's a function of the distance between the terminals and the insulating material used. (For instance, most car-type blade fuses are rated for 32 volts.)How do I know what size fuse to use?
Fuse rating = (watts/volts) x 1.25- Note the power of the appliance – usually in the appliance manual,
- Note the voltage (240 volts in the UK).
- Use the next highest fuse rating after the calculation. Say the calculated fuse rating is 2.2679 amps, use a 3 amp fuse.
Which side of fuse is hot?
because the answer is, "the hot side is the side that can power the accessory while the fuse is removed."What kind of fuse do I need for 12v?
There are 3 types of 12v fuses I recommend. They are Spade Fuses, ANL fuses, and Re-settable Breakers. Spade fuses are the fuses that you'll commonly find in your car's fuse panel and are typically for items run out of your distribution block and less than 30 amps (in our case.Which side of a car fuse is positive?
In all vehicles where the chassis is at ground potential (almost all cars) then the fuse should always be on the positive lead and as close to battery as possible. This way if any part of the positive lead after the fuse comes in contact with the grounded body the fuse will blow and protect the circuit.What happens if fuse box gets wet?
If you think your wiring has gotten wet, you should turn off the fuse and stay away from it. Yet problems can occur if wiring gets wet, as this can corrode wires or, even worse, send an electrical current into your body if you touch it.What does a fuse block do?
A fuse block is used to distribute power in vehicular electrical systems. A fuse block provides multiple fuse circuits, usually 2 to 12 spaces. These circuits can be independent, with each having its own individual input and output wires, or ganged, with power shared across all circuits.How do you check a relay?
Listen for a click when the relay is energized. Check the energized condition of the relay contacts. Use a digital multimeter (DMM) to test the resistance between each pole of the relay and the corresponding NC and NO contacts for that pole. All NC contacts should read infinite resistance to the corresponding pole.Why is white wire hot?
Hot: The black wire is the hot wire, which provides a 120 VAC current source. Neutral: The white wire is called the neutral wire. It provides the return path for the current provided by the hot wire. Like the neutral wire, the ground wire is also connected to an earth ground.Can 10 gauge wire handle 40 amps?
“Twelve-gauge wire is good for 20 amps, 10-gauge wire is good for 30 amps, 8-gauge is good for 40 amps, and 6-gauge is good for 55 amps,” and “The circuit breaker or fuse is always sized to protect the conductor [wire].”What is the difference between marine wire and regular wire?
Most importantly, marine wire is larger for a given gauge size, up to 12% larger in some sizes. The fine stranding makes the wire very flexible, allowing it to better survive in a moving, vibrating boat, while the tinned strands provide additional corrosion protection.How do you pull cable through conduit?
Pulling Wire With a Fish Tape- Feed the end of the tape, which has a hook on it, into the same end of the conduit that you will pull from.
- Push the tape through the conduit, unwinding from the spool as you go.
- Strip insulation from the end of each wire, using wire strippers.
