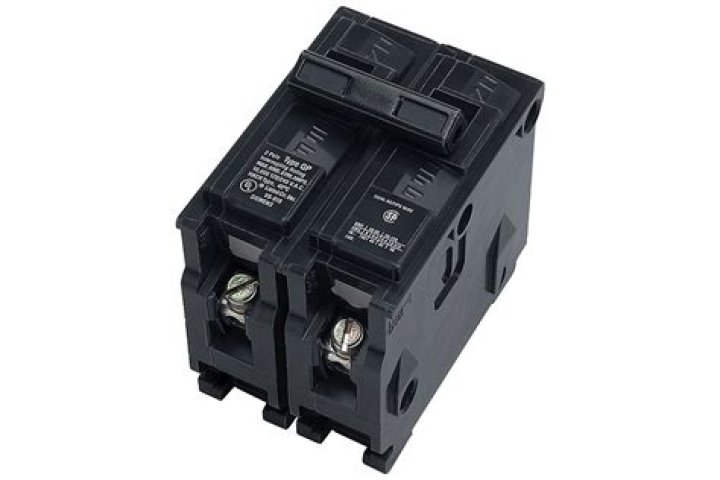

How do you wire a double pole circuit breaker?

Take the wire of the double pole circuit breaker. Using a wire cutter or a wire stripper, strip the wires off ½ inch of insulation from the black, red, as well as the white wires you find. Do this until you expose the bare copper wires. Make sure the wire is gauged well in order support the amperage of the breaker.

.

Keeping this in view, how does a double pole breaker work?

When single-pole breakers are installed, they snap into one pole to receive 120 volts. Double-pole breakers snap onto two poles for a total of 240 volts. This causes the other half of the breaker to trip at the same time because the two halves are tied together by the single breaker bar or toggle.

Also Know, is a double 30 amp breaker 60 amps? A main breaker is a large-amperage double breaker, same as any double breaker in the breaker box, except it supplies power to each busbar. So your question is like asking if you can draw 60 amps off a 30 amp double breaker the answer is NO.

Also know, how do you wire a 240v double pole switch?

How to Wire a 240V Switch

1. Go to your home's circuit panel and turn off the circuit for the room with the outlet you need to wire.
2. Take the outlet cover off by removing the single screw with the screwdriver.
3. Disconnect the wires from the screw terminals on the switch.
4. Attach the green wire to the ground screw on the 240-volt switch.

When should you use a double pole breaker?

Double-pole breakers have two hot wires that are connected by a single neutral wire. That means if there's a short circuit on either of the poles' hot wires, both trip. These breakers can be used to serve two separate 120-volt circuits or they can serve a single 240-volt circuit, such as your central AC's circuit.

Related Question Answers

What is a 30 amp double pole breaker used for?

Product Overview. The Square D by Schneider Electric Homeline 30 Amp Two-Pole Circuit Breaker is used for overload and short-circuit protection of your electrical system. This breaker is compatible with Homeline load centers and CSED devices. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 AIR

Can I use a double pole breaker as a single pole?

Why yes it is possible. A double pole breaker is a circuit breaker that allows two poles in your circuit breaker panel to feed one circuit as in a 240VAC air conditioner or electric stove. A single pole load would send all the load on one half of this circuit breaker.

What is a double pole 20 amp breaker used for?

A double pole breaker is primarily used with a 240-volt circuit, 20-60 amps and consists of two hot wires. The circuit breaker, the wire and the wire insulation are all designed to work together as a system.

Can you separate a double pole breaker?

Re: 2 pole breakers used for 2 single pole circuits So if they are 2 separate circuits but share a neutral, The shared neutral makes them not "two separate" circuits, it makes it "one" multiwire circuit.

Can I use a 2 pole breaker for 120v?

In some circumstances a 120V circuit requires a double pole breaker. If 3 wire romex is used as a branch circuit to supply two 120V circuits (Black, Red, and White wire) a two pole breaker must be used so all ungrounded wires in the multi wire branch circuit are disconnected simultaneously.

Do I need a single pole or double pole switch?

Poles: A switch pole refers to the number of separate circuits that the switch controls. A single-pole switch controls just one circuit. A double-pole switch controls two separate circuits. A double-pole switch is like two separate single-pole switches that are mechanically operated by the same lever, knob, or button.

How many watts can a 20 amp double pole breaker handle?

3,840 watts

What amperage will a 20 amp breaker trip at?

16 amps

Does 2 100 amp breakers make 200 amps?

No. It is 100 amp. And the two 50 amps breakers that are tied together are 50 amps, not 50 + 50 = ! That 2 pole 100 amp CB can provide either 100 amps @ 240 volts or 200 amps @ 120 volts but in answer to your question as Chris stated it's 100 amps.

How many watts can a 30 amp breaker handle?

A 30-amp outlet supplies 3,600 watts (30 amps multiplied by 120 volts). Therefore, the breaker on that outlet could meet code and still trip anywhere between a total load of 2,880 watts (80 percent of 3,600 watts) and 4,320 watts (120 percent of 3,600 watts).

How do you connect two circuit breakers together?

Siemens handle tie locks two breaker handles together so that they have a common operation. The handle tie can be used to connect two single pole breakers together, allowing for one throw to turn both breakers "ON" or "OFF".

How do you wire a 20 amp breaker?

Run a separate 20-amp circuit to each bathroom and laundry room. Install a minimum of two 20-amp circuits for the kitchen. Protect the receptacles with a ground-fault circuit interrupter (GFCI) breaker or GFCI-style receptacles. Use 12-gauge cable for 20-amp circuits and 14-gauge for 15-amp.

Can I replace a 15 amp breaker with a 20 amp breaker?

The answer: It's possible, but not advisable without an electrician evaluating the situation. You should never just upgrade from a 15-amp breaker to a 20-amp one just because the current one is tripping. Otherwise, you may burn your house down via electrical fire.

Can you put two wires one breaker?

If your home has a double tapped circuit breaker, this means that two wires (conductors) are connected to one specific circuit breaker or one terminal on the same circuit breaker. You may also hear this condition referred to as a “double lug.” Some circuit breakers are designed to hold two wires.

How do you wire a 240 volt breaker?

The standard 15- or 20-amp circuit breakers work by clipping onto one of the buses. Then the circuit's hot (red or black) feed wire is clamped to the circuit breaker, while the neutral (white) wire and bare copper ground wire are clamped to the common neutral bar. The way you get a 240-volt circuit is simple.

Can I replace a 20 amp breaker with a 30 amp breaker?

But in general the answer is "No, do not go and put a 30 amp breaker in place of a 20 amp breaker because the wiring is most likely 'sized' for the 20 amp load and -may- overheat if a 30 amp load is used with wiring sized for a 20 amp load."

What is the difference between 220 and 240 volts?

As such, you'll find most of them have 220 volts instead of 240 while others have the vice versa. Most domestic appliances are rated 220 volts and below. This means that they can run on either 220 or 240 volts. However, plugging a 240 volt kiln, for example, into a 220 volts circuit will result in slow firings.

Does 240v need a neutral?

A 240V load needs two “ungrounded conductors”, one from each end of the secondary coil, but no “neutral” which is only needed for 120V loads. However, some loads are rated 120/240V and need both ungrounded conductors AND the neutral.

Is a double pole 20 amp breaker 40 amps?

There are two types of standard breakers: single-pole and double-pole. Single-pole breakers are rated for 120 volts and 15 or 20 amps. Double-pole breakers, on the other hand, are typically rated for 20 to 60 amps and supply 240-volt power to large appliances, like electric dryers and ranges.
