How do you check a motorcycle coil?

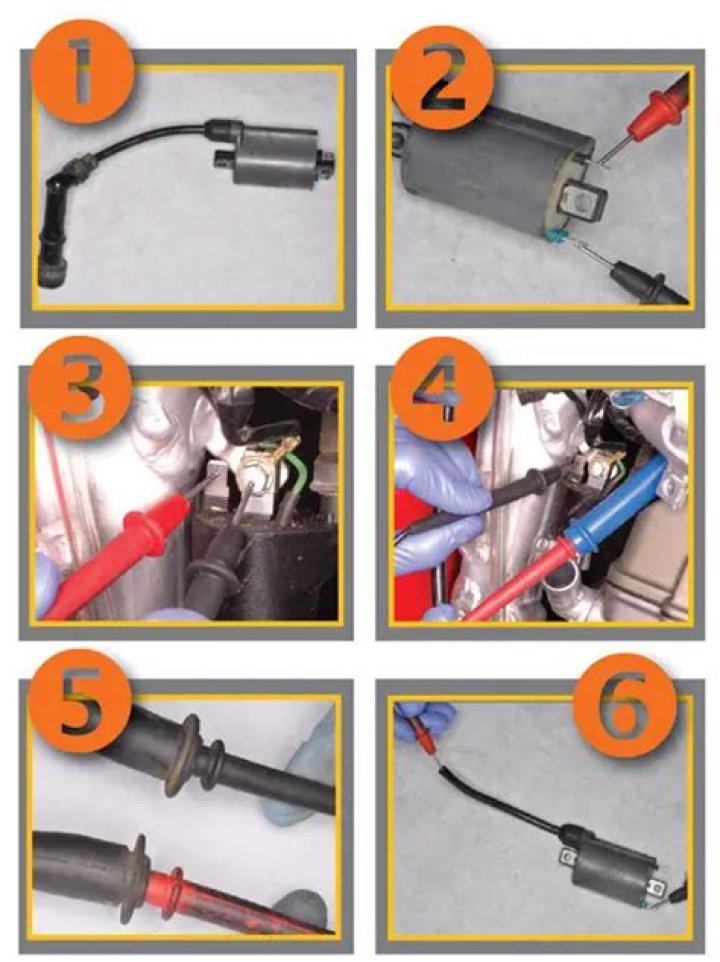

How to Check a Motorcycle Ignition Coil

1. Turn off the motorcycle ignition.
2. Disconnect the spark plug wires from the coil by hand.
3. Measure the resistance between the coil connections for the spark plugs with an ohmmeter.
4. Measure the resistance between the two smaller primary wire connections on the coil with an ohmmeter.

.

Then, how do you check a coil?

Connect your multimeter to the positive terminal or pin of your coil, and to the high output terminal that goes to the spark plug. Most ignition coils should have a secondary resistance falling somewhere between 6,000 to 10,000 ohms;however, refer to manufacturer specifications for the correct range.

will a motorcycle run with a bad stator? Without a good stator, your engine will run poorly or not at all. This solution completely bypasses the stator by using a 12 volt battery to power the ignition system. While a stator is dying, it can produce a weak spark, causing the engine to miss or run poorly.

Also know, how ignition coil works on motorcycle?

Unlike a power transformer, an ignition coil has an open magnetic circuit — the iron core does not form a closed loop around the windings. The energy that is stored in the magnetic field of the core is the energy that is transferred to the spark plug. The primary winding has relatively few turns of heavy wire.

Will a motorcycle start with a bad Rectifier?

In both kinds of engines, the battery will die eventually because the lack of a rectifier will mean that the alternator is not charging the it. Eventually the engine will not start. You'll probably notice that the battery is going flat and having a hard time cranking the engine first though.

Related Question Answers

How do I know if my Harley coil is bad?

Usually, if your bike is at high speed, the engine will jerk and spit, making some unpleasant vibration. And when you get to 'stop sign', the engine may fail to start or it's idling. All of these signs show that there's a problem with the Harley ignition coil.

What are symptoms of ignition coil failure?

Engine misfires, rough idle, and loss of power One of the most common symptoms associated with a faulty ignition coil is engine performance issues. As the ignition coils are among the ignition system's most vital components, an issue can cause spark to be compromised, which can quickly lead to performance issues.

What does a bad ignition coil sound like?

If you try to start your engine up and you hear a spluttering sound repeatedly, then you are likely experiencing an engine misfire that can be attributed to a bad ignition coil. You may still be able to drive your vehicle, but you will hear a lot of strange noises and even feel jerkiness as you accelerate the vehicle.

How do you troubleshoot a motorcycle electrical problem?

How to Diagnose Motorcycle Electrical Problems

1. Battery. A great place to start is at the source of power.
2. Main Fuse. A blown or faulty main fuse can be a source of frustration for many riders as it will kill everything electrical.
3. Ground Wires.
4. Stator.
5. Regulator/Rectifier.
6. Ignition Coil/Plug Wires & Caps.
7. Pickup Coil.
8. Source Coil.

How do you test a spark plug coil?

Testing the Coil

1. First, turn off your car's engine. Then consult your owner's manual to locate the wire that attaches to one of your spark plugs.
2. Next, reattach the spark plug wire. Hold the spark plug with a pair of insulated pliers and touch the threaded bare end of the spark plug to a grounding surface.

What causes no spark to the spark plug?

Loss of spark is caused by anything that prevents coil voltage from jumping the electrode gap at the end of the spark plug. This includes worn, fouled or damaged spark plugs, bad plug wires or a cracked distributor cap.

What causes a weak spark on a motorcycle?

Weak spark occurs when the primary side of the ignition coil short circuits within the coil windings.. (Less coil windings to flow through generates a lower voltage spark (Weak Spark) And to test the coil , you need to know the primary and secondary resistance values to determine if it's farked..

Why does my motorcycle battery keep dying?

Poor Ground Connection Another common cause of dead motor cycle batteries is a poor ground connection between the frame and the battery. This can prevent proper charging of the battery. You should carefully check all the connections to ensure that they are properly connected.

Can a bad rectifier cause no spark?

Yes, a faulty rectifier can cause no-spark condition.

What is a motorcycle Rectifier?

A motorbike rectifier is an electronic unit which converts 12 volts DC out of the 11 to 14 volts AC the generator/alternator in the engine delivers.

How much does an ignition coil cost?

Know what price you should pay to get your vehicle fixed. The average cost for an ignition coil replacement is between $223 and $328. Labor costs are estimated between $58 and $75 while parts are priced between $165 and $253. Estimate does not include taxes and fees.

Should you replace all coil packs at the same time?

A faulty ignition coil cannot be repaired; it must be replaced. In cases like this, to prevent future problems, your mechanic may recommend replacing all three rear ignition coils. Whenever one of the ignition coils goes bad, it's also recommended replacing all spark plugs if they haven't been replaced in a while.

What connects to the ignition coil?

The ignition coil is the part of your engine that produces high voltage in order to power your cylinders. The distributor is what gets that high voltage from the coil to the right cylinder. The coil's ground side connects to breaker points, which are connected by a lever to a cam in the middle of the distributor.

Can you test a coil pack?

Test the coil with a multimeter. Disconnect the coil pack's electrical connector then remove the coil pack from your car's engine using a wrench. Set the ohmmeter/multimeter to 200 ohms range then turn it on. The primary winding for a coil pack is from 0.4 to 2 Ohms while secondary winding is at 6,000 to 10,000 Ohms.

How do you test a small engine ignition coil?

Testing the ignition coil and the spark plug Connect the tester between the spark plug boot and the spark plug. Then start the engine and watch the tester. Most people think you can check a small engine's ignition system by removing the spark plug and grounding it while cranking the engine and watching for a spark.

How do you check for a bad coil pack?

Common Symptoms of a Faulty Coil Pack

1. A rough idle.
2. An unexplainably louder-than-usual engine.
3. A noticeable lack of power.
4. A significant drop in RPMs while accelerating for no apparent reason.
5. A blinking or intermittently activating check engine light.
6. An active gas warning light when the vehicle has plenty of gasoline.

What is the output voltage of an ignition coil?

The voltage that is available to the spark plug is somewhere between 20,000 volts and 50,000 volts or better. The job of the ignition system is to produce that high voltage from a 12 volt source and get it to each cylinder in a specific order, at exactly the right time.

How do I know if I have a bad coil pack?

Common Symptoms of a Faulty Coil Pack Some of the most common tell tale signs that a coil may be defective include: A rough idle. An unexplainably louder-than-usual engine. A blinking or intermittently activating check engine light.

How long do coil packs last?

The ignition coil on your car is supposed to last around 100,000 miles or more.
