How do you calculate the weight of a sheet of plywood?
By Christopher Davis •
Engineers have rounded-off weight calculations for plywood to square foot calculations, and have decided that, for engineering purposes, a generic square foot of 3/4-inch-thick hardwood plywood weighs 2.3 pounds. A 4-by-8 sheet of plywood equals 32 square feet, so 32 times 2.3, is just over 70 pounds per sheet.
.
People also ask, how do you calculate the weight of plywood?

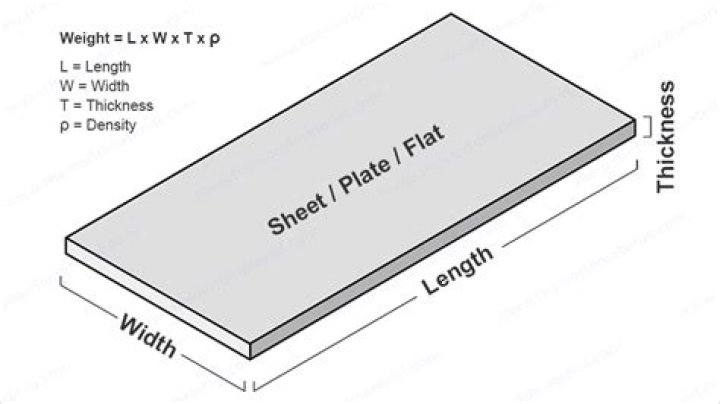

A piece of plywood weighs approximately 600kgs per m³. The calculation is simple: Length x Width x Height x 600.
Likewise, how much does a 8x4 sheet of plywood weigh? – Hardwood plywood typically weighs around 55 lbs. per 3/4-in. -thick sheet. Utility plywood can be much heavier, however.
Also question is, how much does a sheet of plywood weigh?
On average, a 4′ x 8′ sheet of 3/4″ softwood plywood weighs about 61 pounds. Read on to learn more about what impacts the weight and find the weight for different varieties and thicknesses of plywood.
How much does a half inch sheet of plywood weigh?
Table of materials
| Material | Unit weight |
|---|---|
| Masonry Walls | |
| 1/2 inch | 2.08 ppsf (66.56 pounds per 4x8 sheet) |
| 5/8 inch | 2.60 ppsf (83.2 pounds per 4x8 sheet) |
| Plywood | |
How much does a 2x4 weight per foot?
Kiln Dried Lumber Boards| Weight (lb) | ||
|---|---|---|
| Nominal Dimension (in x in) | Length (ft) | |
| 2 x 4 | 11 | 16 |
| 2 x 6 | 16 | 24 |
| 2 x 8 | 21 | 32 |
What does 12mm plywood weigh?
Structural Plywood| Product Description | Pack Size | Approx Weight |
|---|---|---|
| 2400 x 1200 x 9mm (5 ply) | 60 | 16-17 |
| 2400 x 1200 x 12mm | 45 | 21-22 |
| 2400 x 1200 x 15mm | 35 | 27-28 |
| 2400 x 1200 x 17mm | 30 | 31-32 |
What is the lightest weight plywood?
Veneer core hardwood plywood is normally the lightest type of plywood you can buy. The core of this material is made from fir, which is a very light wood, and then a wood-grain veneer is placed on one side of the board.What is the weight of 18mm plywood?
Height - 2440mm. Depth - 18mm. Weight - 27.2Kg. Certifications - EN314-2 CL2 & EN636-1S, E1.What is the weight of plywood per square foot?
The APA (American Plywood Association) has created design specifications for the production of various plywood products. In it, they state that softwood plywood should weigh approximately 3 pounds per square foot, per inch of thickness.How do you calculate the weight of wood?
Calculate weight, Mike, using the formula: density × volume. Well-dried, seasoned oak has of a density of about 3.6 pounds per board foot. Now find the board footage of your lid by multiplying its length, width, and thickness, and dividing by 144.How heavy is a piece of wood?
With the specific gravity around 1.5, solid wood "substance", or lignocellulose as it is commonly called today, weighs around 1500 kg/m3 (93.6 lb/ft3), at theoretical most… no air, water, or other fluids in cell pores, which would decrease the weight of the wood per unit of volume.How much does a 2x4 weight?
The answer is 9 – 17 lbs.How much weight can a 3/4 inch plywood hold?
50 lbs.How much does a 3/4 sheet of plywood cost?
Cabinet Grade Plywood| Thickness | Type | Price |
|---|---|---|
| 1/4" | Oak Plywood | $25.97 |
| 1/2" | Oak Plywood | $42.97 |
| 1/2" | Birch (3 ply) | $41.97 |
| 3/4" | Birch (5 ply) | $44.97 |
How much weight can 3/4 OSB support?
Medium OSB Panels of OSB that are 23/32- and 3/4-inch-thick, set on joists 24 inches OC, can bear 100 psi live weight and 10 psi dead weight. Panels that are 7/8-inch and 1-inch-thick, mounted on joists 32 inches OC, can bear 100 psi live weight and 10 psi dead weight.What is marine plywood?
Marine plywood is manufactured from durable face and core veneers, with few defects so it performs longer in both humid and wet conditions and resists delaminating and fungal attack. Its construction is such that it can be used in environments where it is exposed to moisture for long periods.How much does a sheet of 1/2 drywall weigh?
The Weight of a Sheet of Drywall For a frame of reference, standard 1/2" drywall that is used in interior residential construction generally weighs about 1.6 pounds per square foot, totaling 51.2 pounds for one sheet.How much does a board foot of Walnut weigh?
To find the average dry weight per board foot, divide the pounds per cubic foot by 12.Average Dry Weight.
| Average Dry Weight (kg/m3) | Specie Name |
|---|---|
| 37 lbs/ft3 (600) | Peruvian Walnut |
| 38 lbs/ft3 (610) | Walnut |
| 38 lbs/ft3 (610) | Figured Walnut |
| 38 lbs/ft3 (610) | Koa |
What is the density of plywood?
The density of pine plywood is in the range 500 - 650 kg/m3. Eucalypt hardwood plywood density can exceed 900 kg/m3 depending on the timber species used. Generally, higher density species have higher engineering properties.What does particle board weigh?
Lumber & Panel Weights| Panel Weights | ||
|---|---|---|
| Pounds per Square Foot | 1/8″ or 2.6mm | 1″ or 25mm |
| Particle Board | 4.38 | |
| Particle Board Core Melamine and Domestic Hardwood Panels | 4.85 | |
| Import Hardwood VC | 0.33 | 2.80 |
