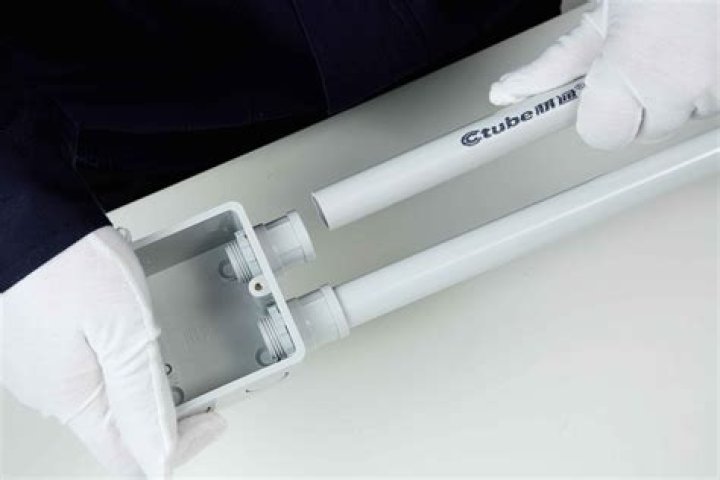

How do I replace conduit?

How to Repair and Remove Conduit for Electric Wires

Step 1: Shut Off the Electricity Flow.
Step 2: Disconnect the Wires Near the Damage.
Step 3: Pull One End of the Wires Out of the Conduit.
Step 4: Unscrew or Use Pliers to Remove Conduit Supports.
Step 5: Unscrew the Electrical Conduit Fittings.
Step 6: Measurements.
Step 7: Cut a Part of Conduit Tubing.

Beside this, how do I replace the wire in my conduit?

Fit the hose of a shop vac over the other end of the conduit, and turn on the vacuum until the mouse is sucked all the way to that end, then turn off the vacuum. Pull the mouse out of the conduit and untie the string from the wire loop. Secure the string to the wires, and lubricate the wires, as needed.

Similarly, what is split duct? Split Duct. Split Duct and Kits are the fast & easy solution to repair broken duct work without the costly cutting and re-splicing of your conductors. Split Duct. Unique tongue-and-groove design leads the industry in providing a strong, rigid solution for duct repair situations.

In this manner, can you strip Romex and run in conduit?

The most common type of cable used in home wiring is non-metallic (NM), or Romex, cable. While NM cable can be run inside conduit, this is seldom done. They are similar to the wires you see when you strip the outer sheathing off of NM cable.

How do you seal outdoor electrical conduit?

Seal around the outside of the conduit with either PVC caulking (preferred) or duct seal. If there are any larger holes, to prevent vermin from entering the building, use some steel wool to fill the hole first. I also recommend sealing it on the inside penetration.

How do you run PVC conduit underground?

Bury in the Ground: Dig 24 inches. At 24 inches you can bury underground feeder cable, using PVC conduit to 18 in. below ground only where the wire comes up. If you're considering running a power line underground through your yard, you have four options.

How do you get water out of underground conduit?

1) Blow the pull-string into the conduit from either end to locate the trapped water. 2) Extend the garden hose through the conduit and into the trapped water. 3) Use the shop vac attached to the garden hose to remove the water.

How do you fix a cracked PVC pipe?

Repair Epoxy Repair epoxies designed to bond to PVC and other plastics commonly come in putty and liquid (syringe) forms. Both can be used to repair PVC joint and pipe leaks. Dry the area and apply the epoxy as directed by the manufacturer.

How many wire can you put in conduit?

Allowable Conduit Fill Capacities

Size and Type of Conduit	14 AWG Wire	12 AWG Wire
1/2-inch EMT	12	9
3/4-inch EMT	22	16
1-inch EMT	35	26
1 1/2-inch EMT	84	61

Can I run electrical wire through PVC?

Outdoor flexible nonmetallic tubing is strong and watertight, non-corrosive and weighs less. Metal or plastic boxes can be used with nonmetallic conduit. Always run a ground wire when using PVC conduit.

How do you wire fish with tape?

Twist a strand around all of the wires attached and wrap the whole head of the wire connection with electrical tape. Adding wire-pulling lubricant makes the pull much easier. When a job calls for large wire in a conduit, electricians may use a fish tape to pull in a rope, then use the rope for the wire pull.

How do you fish wire through a long conduit?

String wire

Step 1 - Tie the string to a long and nonflexible rod.
Step 2 - Push the string and rod through the conduit until the rod appears at the other end of the conduit.
Step 3 - Tie electric wire on the string.
Step 4 - Pull the rod back to the conduit and take the wire.

Does electrical wire need to be in conduit?

Code requires that romex be installed in a conduit. Conduit also protects your wires from exposed surfaces such as rough bricks in a basement. PVC conduit is easy to cut and to install and will make your wire installation simpler. If your wiring is outdoors, it is very beneficial to run it in an underground conduit.

What is wire size for 200 amp service?

So, for a 200-amp service, you would still be allowed to choose a 4/0 AWG aluminum or 2/0 AWG copper, but you would choose it from the 75 degree C column in Table 310.15(B)(16).

What is THWN wire?

THWN stands for "Thermoplastic Heat and Water-resistant Nylon-coated." THWN is a designation for a specific insulation material, temperature rating, and condition of use (wet locations) for electrical wire and cable.

How do you feed wire through a flexible conduit?

How to Run a Wire Through a Flexible Conduit

Tie a string to a long, thin nonflexible rod.
Push the rod and string through the conduit until the string emerges from the opposite end.
Tie electrical wires onto the string.
Pull the rod back through the conduit, bringing along the wires.

Can nm B WIRE be put in conduit?

While the National Electrical Code does not expressly forbid inserting NM cable inside conduit, in practice, it is very difficult to do so, and very few professional electricians will do such an installation. THHN wires are relatively inexpensive and are much easier to run through conduit.

Can you run bare ground wire in PVC conduit?

Running bare ground inside the PVC conduit is fine. Inside is better than outside in case you ever need to service it or if your demand out there increases pulling larger conductors and a larger ground. In 1-1/4" sch 40 PVC you're permitted up to four #4 wires, and this gauge will get you 100 amps.

Can I run a bare ground wire in conduit?

Running bare ground wire in a metal conduit is a waste of time, as the inevitable contact will render the two ground systems homogeneous. Industry standard is to use single strand insulated solid wire (green) within the conduit to transfer the faults down to the grounding plane. Do not pull Romex through a conduit.

Does Romex have to be in conduit in garage?

Romex is a real PITA to run in conduit. You may not run Romex along the surface of the wall. You may use conduit or armored cable (AC or MC). You have to run this in Conduit no romex cable are allowed to be exposed on finshed garage walls.

Is Romex a Thhn?

Romex wire is made out of two or three THHN wires combined with a grounding bare copper wire. Like the THHN wires, Romex wire can't be used outside because of its minimal PVC jacket protection. The primary use for this type of wire is to run more than one conductor at a time through a separate grounding wire.

Do you need a ground wire in PVC conduit?

PVC is not conductive and it's not and cannot be used for grounding. Metallic conduits are grounded due to the need to ground all metallic parts of the electrical system or appliance where applicable. Most times there will also be an Earth wire in the metallic conduit.

Can you run Romex through conduit?

one reason you don't put romex in conduit is because it creates more heat and is not advised in conduit if you have conduit you can run insulated wires instead it's probably cheaper. when you put romex inside conduit The Romex cannot breathe and retains too much heat.

When should I use conduit electrical wiring?

Conduit typically is used only where circuit wires are exposed (or surface-mounted or buried) and therefore need protection from damage or moisture. Conduit offers protection to electrical wires that run in exposed locations.
