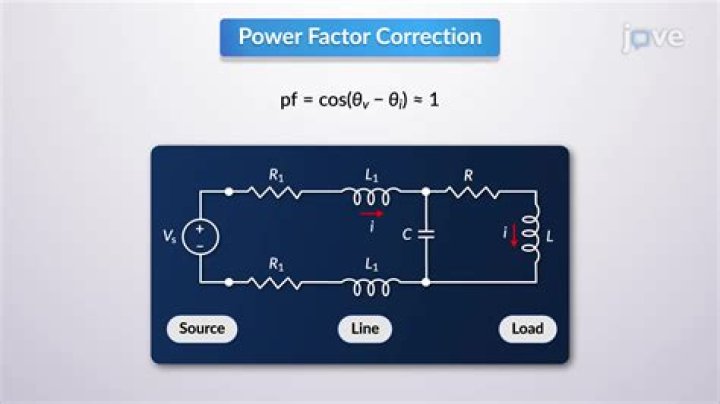

Does Power Factor Correction reduce current?

The whole reason for doing power factor correction is to reduce current. If the load is reactive, the current will be out of phase with the voltage with some phase angle (PA). The phasor of the current can be divided into two components - the Real current and the Reactive current.

.

Also asked, does power factor affect current?

A lower power factor causes a higher current flow for a given load. As the line current increases, the voltage drop in the conductor increases, which may result in a lower voltage at the equipment. With an improved power factor, the voltage drop in the conductor is reduced, improving the voltage at the equipment.

Also, what does power factor correction do? Power Factor Correction (PFC) equipment is a technology which when installed allows the consumer to reduce their electricity bill by maintaining the level of reactive power consumption. If a sites Power Factor falls below a predetermined figure then the electricity company adds reactive power charges to your bill.

Furthermore, does Power Factor Correction save energy?

Strictly speaking, power factor correction is not an energy saving measure (real power remains the same). However, it is a cash saving measure. Given that one of the main purposes of energy efficiency is to save money, power factor correction is typically carried out along with energy efficiency retrofits.

How do you calculate power factor correction?

Calculate the apparent power, or Voltage Squared divided by Impedance, as well as True Power, by multiplying Current squared by the resistance in your circuit. The Power Factor is Watts divided by Volt-Amps. Keep reading to see examples of these calculations!

Related Question Answers

What is a good power factor?

Good power factor is generally between 1.0 and 0.95. Poor power factor is anything from 0.95 and 0.85. Bad power factor is anything below 0.85. Commercial office buildings are usually somewhere between 0.98 and 0.92, industrial buildings could be as low as 0.7.

What causes poor power factor?

An increase in electrical system capacity. A low power factor causes a greater loss of power in your electrical distribution system.

Low power factor usually is caused by inductive loads, such as:

• Electric motors.
• Transformers.
• Arc welders.
• HVAC systems.
• Molding equipment.
• Presses.
• High-intensity discharge lighting.

What happens if power factor increases?

When the Power Factor increases, the load's wattage increases and becomes equal to the load's Volt-Ampere because the load's volt-ampere will coincide with the loads' Wattage at zero degree angle.

How power factor affects power consumption?

so more the angle less will be the power factor (as angle increase value of cos decreases) and more will be the reactive power and more will be the losses and voltage drop will be there and it will affect the efficiency of your appliances like fan tube etc so more will be the energy consumption .

What is most economical power factor?

The most economical p.f. is cos , where φ₂ is given by Eq. (ii). In the past, the most economical value of power factor was around 0.95. The present value is towards unity because of the high costs of plant and fuel. However, as the power factor approaches unity, the cost of power correction equipment becomes more.

Can power factor be more than 1?

True power may be equal to apparent power but cannot exceed. So that is why power factor can not more than unity. The defination of power factor is the cosine angle between voltage and current but maximum cosine value is 1 and minimum is -1. So power factor above 1 is impossible.

What is difference between kW and kVA?

kVA is known as the 'apparent power', while kW refers to the actual, or real power. kW is kilowatts, while kVA is kilo Volts Amperes. 4. kVA is equal to kW in DC circuits because the voltage and current are not out of phase (unity).

What is the unit of Power Factor?

Power factor (PF) is the ratio of working power, measured in kilowatts (kW), to apparent power, measured in kilovolt amperes (kVA). The result is expressed as kVA units. PF expresses the ratio of true power used in a circuit to the apparent power delivered to the circuit.

What is a good power factor range?

Permissible range of power factor The total power demand on the network is usually greater than the real power. The ratio of the real power to the total power is your power factor, a number between 0 and 1. The higher the power factor the more efficient your site is at utilising the supplied power.

What is the power factor on my electric bill?

Power Factor is a measure of how efficiently electrical power is consumed. In the ideal world Power Factor would be unity (or 1). Unfortunately in the real world Power Factor is reduced by highly inductive loads to 0.7 or less.

What is the physical significance of power factor?

The significance of power factor lies in the fact that utility companies supply customers with volt-amperes, but bill them for watts. Power factors below 1.0 require a utility to generate more than the minimum volt-amperes necessary to supply the real power (watts). This increases generation and transmission costs.

Can capacitor reduce electric bill?

Answer is simply No. Capacitors or capacitor banks are used to improve power factor how ever you are charged for the power used by the capacitor bank. There's no what of reducing electricity bill, its charged based upon the power usage.

What is domestic power factor?

Power Factor Definition : Power factor is the ratio between the KW and the KVA drawn by an electrical load where the KW is the actual load power and the KVA is the apparent load power. The resistive component of the current is in phase with the supply voltage and draws KW as measured by the power meter.

What is real power in AC circuit?

Real Power in AC Circuits Real power (P), also known as true or active power, performs the “real work” within an electrical circuit. Real power, measured in watts, defines the power consumed by the resistive part of a circuit. Then real power, (P) in an AC circuit is the same as power, P in a DC circuit.

How do you know if power factor is leading or lagging?

If the currents leads the voltage (greater angle than voltage) then the power factor is leading (capacitive load). If the current lags the voltage (less angle than voltage) then the power factor is lagging (inductive load).

What is the advantage of improving power factor?

Raising power factor is a proven way of increasing the efficient use of electricity by utilities and end-users. Economic benefits for end-users may include reduced energy bills, lower cable and transformer losses, and improved voltage conditions, while utilities benefit from released system capacity.

What are the advantages of power factor correction?

Benefits of Power Factor Correction

• Reduced Demand Charges.
• Increased Load Carrying Capabilities In Existing Circuits.
• Improved Voltage.
• Reduced Power System Losses.
• Reduced Carbon Footprint.

Where is power factor correction?

In such cases, active or passive power factor correction may be used to counteract the distortion and raise the power factor. The devices for correction of the power factor may be at a central substation, spread out over a distribution system, or built into power-consuming equipment.

What is power factor in 3 phase?

Most types of three-phase power calculations are performed using this equation: P = √3 × pf × I × V. This simply states that the power is the square root of three (around 1.732) multiplied by the power factor (generally between 0.85 and 1, see Resources), the current and the voltage.
