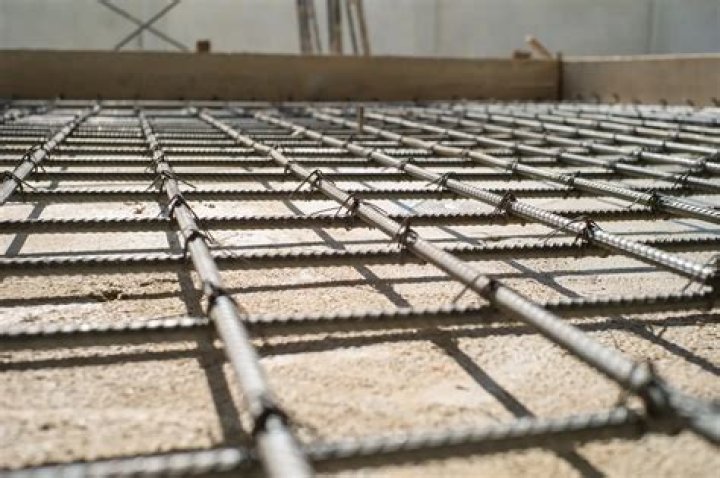

Does a small concrete slab need rebar?

Not all surfaces need concrete rebar reinforcement, but adding it makes concrete stronger and more resistant to large cracks. Without rebar reinforcement, concrete is highly prone to cracks due to tension forces. Rebar helps prevent cracks from growing wider largely by preventing cracked slabs from moving apart.

.

Herein, do you need rebar for 4 inch slab?

A concrete slab reinforced with rebar or welded wire fabric should have a minimum 1 1/2 inches of clear cover between the reinforcing and the top of the slab. On grade you can get away with welded wire fabric in most instances. Suspended slabs almost always require rebar reinforcing.

Secondly, what size rebar do I need for a concrete slab? Common Rebar Sizes Rebar in patios, basement floors, footings and driveways may vary from size 3 to 6. Contractors sometimes use the “1/8 Rule,” meaning the size of the rebar is 1/8 the thickness of the slab. For example, a slab that is 6 inches thick might have rebar marked as size 6 or 3/4-inch.

Similarly, does concrete patio need rebar?

Rebar Basics For concrete patios, use #3 rebar. These bars have a 3/8-inch diameter. The soil under the patio will provide most of the necessary support for the concrete. The rebar installed is intended to minimize cracks caused by the concrete shrinking and swelling depending on the temperature and weather conditions.

Do I need gravel under my concrete slab?

Whether you pour concrete for a walkway or patio, a strong gravel base is required to prevent the concrete from cracking and shifting. Gravel is especially important in clay soil because it doesn't drain well, which results in water pooling under the concrete slab and slowly eroding the soil as it finally drains.

Related Question Answers

Can you pour concrete directly on dirt?

How to Pour Concrete Over Dirt. Home owners can accomplish the task themselves by pouring the concrete directly on the ground in the installation area. However, the ground must be properly prepared by removing vegetation. In addition, you must construct sturdy barriers to hold the wet concrete in place until it dries.

What's the difference between a concrete slab and a cement slab?

The difference between cement and concrete Although the terms cement and concrete often are used interchangeably, cement is actually an ingredient of concrete. Concrete is basically a mixture of aggregates and paste. The aggregates are sand and gravel or crushed stone; the paste is water and portland cement.

Does rebar stop concrete from cracking?

Steel reinforcing bars and welded wire reinforcement will not prevent cracking. Reinforcement is basically dormant until the concrete cracks. After cracking, it becomes active and controls crack widths by restricting crack growth.

Does rebar help concrete from cracking?

Rebar is easy to set into place before pouring the concrete. It helps to reduce the cracking and breaking that is common in concrete because of its brittle properties. Rebar provides strength to concrete and saves money for the purchaser since the concrete slab, blocks or building will last longer.

Where should rebar be placed in a slab?

Therefore, for a typical 100 mm residential concrete slab, the rebar should be placed at a depth of approximately two thirds the slab thickness from its surface. Placing the rebar at the bottom of the slab will provide no benefit to the concrete.

Do I need mesh in my concrete slab?

And yes, mesh is important: Concrete is strong in compression, but not under tension. So, if it flexes, like a slab with a vehicle on top of will do, it cracks at the bottom whre the flexing becomes tension. Steel mesh will prevent this to a large degree and hold it all together.

What size rebar would be used on a 4 slab?

For driveways and patios a #3 rebar which is 3/8 inch in diameter should be sufficient for the purpose. If you are constructing walls, piers or columns I recommend the use of #4 (1/2 inch) rebar. For building footings I would use a #5 (5/8 inch) rebar.

Should concrete patio be attached to foundation?

No, dont attach the slab to the house. Unless you put down a foundation, the slab will rise and fall with 'frost freeze'.. And, it 'will' crack your foundation.

Does quikrete need rebar?

Rebar should be placed in every other masonry core to provide structural support. For masonry cores over 4 inches wide, QUIKRETE Core Fill Grout – Coarse should be poured around the rebar; for masonry cores under 4 inches wide, QUIKRETE Core Fill Grout-Fine should be used.

How thick does a concrete patio need to be?

We generally try to maintain a minimum thickness of any slab at 4 inches, if the patio will have heavy features added on it, you may want to thicken it to 6 or even 8 inches, at least under the area where the feature will be added.

Can I pour concrete over concrete?

If the existing concrete is in good shape structurally, you can pour new concrete over it to freshen it up. Proper prep work is key to success when layering new concrete over old. If the existing concrete is in good shape structurally, you can pour new concrete over it to freshen it up.

How do you lay rebar on a concrete slab?

Tie into the existing slabs When you're joining two concrete slabs, connect the two with rebar to keep them at the same height. Drill the holes as deep as you can (the entire length of the bit) so the rebar fits snugly into the holes. Insert chunks of rebar and tie them into the grid.

How do you make a homemade concrete patio?

How to Build a Concrete Patio

1. Step 1: Lay Out and Excavate the Patio.
2. Step 2: Drive Stakes Along the New Layout Lines.
3. Step 3: Nail the First Form in Place.
4. Step 4: Splice Boards Together, if Necessary.
5. Step 5: Place the Mesh.
6. Step 6: Pour the Concrete Into the Forms.
7. Step 7: Flatten the Surface.
8. Step 8: Round the Edges.

How do you reinforce a concrete slab?

The most common reinforcement systems rely on rebar and/or reinforcing mesh. When incorporated into a concrete slab, these additions help distribute the tensile weight more evenly. Another method of reinforcing concrete is to add steel fibers to the mix.

When can you walk on concrete?

Walking: We request you not walk on your concrete for at least 24 hours after the concrete has been finished. Thereafter if it is used or walked on it will scuff and scratch easily for at about 3 days. So avoid dragging your feet and keep pets off for this duration as their nails may scratch or gouge the new concrete.

Can rebar be welded?

In general, only steel rebar that is “Grade W” can be welded. Rebar that is not produced to the ASTM A706 specification is generally not suitable for welding without calculating the “carbon-equivalent”. Material with a carbon-equivalent of less than 0.55 can be welded (AWS D1. 4).

Should I use wire mesh concrete?

YES When long joint spacing is required or when joints are unacceptable in floor use. Although short joint spacings alleviate the need for reinforcement, wire mesh will allow for increased distance between joints if correctly placed in the upper portion of the slab, at least two inches below the surface.

How do you keep concrete from cracking?

Some Other Preventive Control Measures for Cracks in Concrete:

1. Applying good acrylic silicone sealer yearly to concrete works.
2. Avoid calcium chloride admixtures.
3. Prevent extreme changes in temperature.
4. Consider using a shrinkage-reducing admixture.
5. Warm the subgrade before placing concrete on it during cold weather.

How do you calculate rebar size?

Find the diameter and area of the rebar along with the weight per linear foot. To find the total weight, multiply the total length of rebar with the weight per linear foot if measured in feet, or weight per meter if measured in meters.
