Do smoke alarms need their own circuit

The electrical code does not require that hardwired smoke detectors be connected to their own dedicated circuit, though there is nothing wrong with installing a new circuit for this purpose. More often, though, hardwired smoke detectors are installed by splicing into a general lighting circuit or outlet circuit.

Do smoke alarms need to be on a separate circuit?

Residential smoke alarms should be wired on a dedicated circuit. It’s a good idea to have at least one light or receptacle-on the same circuit, to alert the homeowners in case the circuit breaker ever trips. Interconnected alarms are usually wired in a daisy chain, using 14-3 or 12-3 cable.

Are smoke alarms wired into lighting circuit?

The Smoke alarms can be connected to a lighting circuit – this is the preferred circuit. The alternative is wiring on a dedicated circuit.

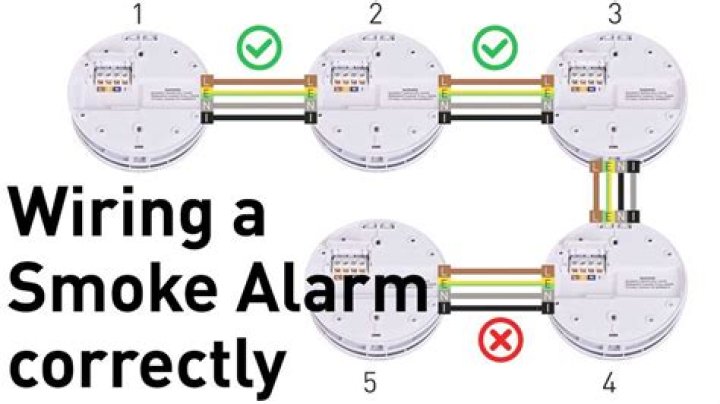

Do interconnected smoke alarms need to be on the same circuit?

All interconnected smoke alarms must be supplied from the same circuit. A common Neutral must be used for the Interconnect to operate. DO NOT connect the Interconnect wire to Active or Neutral.

What circuit do smoke detectors go on?

Hardwired smoke detectors are powered directly to an AC electrical circuit, which is standard in new construction. Many also include a battery backup system to keep it functioning during power outages.

Can I disconnect my hardwired smoke detector?

Most people ask themselves, “can I remove a hardwired smoke detector?” The answer is you can！ If you have to stop the hard-wired smoke detectors from beeping, you must unplug them from the clip and remove the battery.

Can I use the ground wire to interconnect smoke detectors?

Turn off your power completely before attempting to connect your smoke detectors. … A 12-2 NMB with ground wire will need to be run from your electrical panel to the first smoke detector. From there, a 12-3 NMB wire will need to be run to the second detector, and so forth to each subsequent detector.

Do smoke alarms have to be RCD protected?

The circuit supplying the fire alarm system should not be protected by a residual current device (RCD) unless this is necessary to comply with the requirements of BS 7671 (regulation 522.6. 101 & 522.6. 102).

Can you interlink different smoke alarms?

Up to 50 smoke, heat or carbon monoxide alarms can be interlinked in a network for maximum coverage. … Additional smoke, heat, CO and specialised products such as strobes and pads and low frequency sounders for the deaf and hard of hearing can easily be wirelessly added or removed.

Should smoke alarms be RCD protected?

b. the rcd protection of a smoke alarm circuit should operate independently of any rcd protection for circuits supplying socket-outlets or portable equipment. 1.21 Any cable suitable for domestic wiring may be used for the power supply and interconnection to smoke alarm systems.

Article first time published on

Can you spur off a smoke detector?

You can spur off with a joint box in the loft, making sure you connect the L N and interlink through tot he new one correctly (as cable colours may be different if original install was older). The additional smoke alarm would need to be the same make as the ones installed – Most are not compatible with each other.

Do you have to turn off power to change smoke detector?

In short yes. Hard-wired smoke detectors run directly from a circuit panel should be powered down to change. If they are run in series with other smoke detectors, all should be changed at the same for compatibility.

Do smoke alarms need an earth?

Note: Alarms do not need to be earthed, however the terminal marked with the Earth symbol is provided for the convenience of the installer so that any Earth cable can be safely terminated.

How many amps is a smoke detector?

Either a 15-amp circuit (wired with 14-gauge wire) or a 20-amp circuit (wired with 12-gauge cable) is acceptable for powering hardwired smoke detectors. Wiring the smoke detectors is fairly straightforward for an experienced DIYer or a professional electrician.

What happens if you unplug smoke detector?

The fire alarm won’t start if the battery is removed from the smoke detector. The unit will likely be disabled instead of doing the opposite. There is only one reason to remove the battery, and that is to replace it with a fresh one.

How do you stop a hardwired smoke detector from beeping without battery?

1. Locate the reset button on the surface of the smoke detector.
2. Hold it for 15–20 seconds and then release.
3. Wait a couple of minutes and listen for the chirping noise again.

How do I know if my smoke detectors are interlinked?

Most alarms have a test push button as standard. Press this test button for approximately 5 seconds and the alarm should sound. If the detectors at the property are interlinked, they too will also sound. Any smoke alarms that do not sound should be investigated immediately.

Can I replace a hardwired smoke detector with a battery operated one?

Replacing a hard-wired smoke detector is almost as easy as replacing a battery-powered version. New alarms are inexpensive. … Turn off the power at the main electrical panel and disconnect the old alarm (Photo 1). Check to make sure the power is off with your voltage tester.

How do you turn off an electric smoke alarm?

Most smoke detector and fire alarm models will include a “silence” function. Press this, and the beeping will stop. If the smoke detector/fire alarm continues to pick up on smoke after a short period has elapsed, the beeping noise will start again to ensure your safety.

Is fire alarm voltage AC or DC?

Utility 120 Volt or 230 Volt Power They require utility power (120 or 230 volts AC) and convert this utility power to the 12 volts or 24 volts DC that the fire alarm system uses.

What voltage is a fire alarm system?

All modern Fire Alarm Systems are 24 volts. On the medium and larger sized Fire Alarm Systems, the standby batteries will often not fit within the Control Panel.
