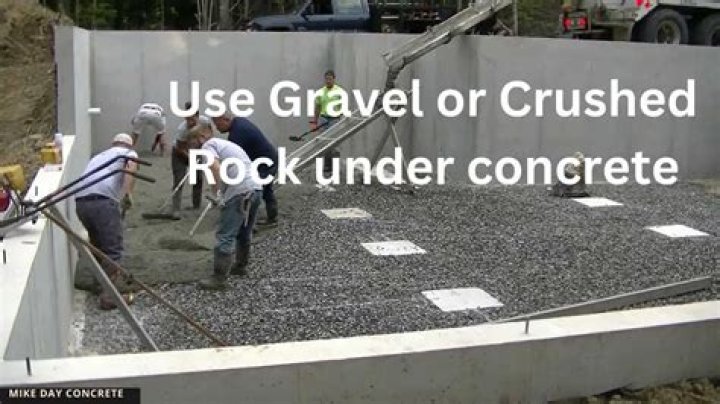

Do I need gravel under concrete slab?

Whether you pour concrete for a walkway or patio, a strong gravel base is required to prevent the concrete from cracking and shifting. Gravel is especially important in clay soil because it doesn't drain well, which results in water pooling under the concrete slab and slowly eroding the soil as it finally drains.

.

Also to know is, how many inches of gravel do you need for a concrete slab?

Excavate the slab area to a depth of about 7 inches, allowing 3 inches for a gravel base and 4 inches for concrete.

Likewise, can you pour concrete directly on dirt? Prepare the dirt before pouring concrete. If you are constructing a patio, shed or a sidewalk, the process often starts with pouring a solid concrete base to provide sturdy support. Home owners can accomplish the task themselves by pouring the concrete directly on the ground in the installation area.

Also, what is the best base for concrete slab?

Subgrade and subbase are the foundation of a concrete slab and play critical role in its performance. According to the ACI Code, the subgrade is a compacted and improved natural soil or brought infill whereas subbase is a layer of gravel placed on the top of the subgrade.

What type of gravel goes under concrete?

Because concrete is a very porous material, it will absorb any moisture that it contacts. This can cause pooling. Without crushed stone, pooling water will settle under it and erode your slab. Adding a layer of crushed stone will add proper drainage, as well as create a barrier between your slab and the ground.

Related Question Answers

When should I start watering my concrete?

Be sure to start watering the concrete in the morning and keep watering throughout the hottest part of the day. Do not start watering during the hottest part of the day because it could shock the concrete into developing surface crazing (similar to a hot glass breaking when filled with cold water).

Should you put plastic under concrete?

Vapor retarders have been used since the 1950s. Recently, though, research has shown that the old traditional layer of 6-mil Visqueen (polyethylene plastic) under the slab is seldom effective for two main reasons: Although it may seem water-tight, this grade of material allows a lot of water vapor to pass through.

What do you put under a concrete slab?

Just scrape off the sod and topsoil and add gravel fill if needed. If you have clay or loam soil, you should remove enough to allow a 6- to 8-in. layer of compacted gravel under the new concrete. If you have to remove more than a few inches of dirt, consider renting a skid loader or hiring an excavator.

Why do you put crushed rock under concrete?

Allows for Water Drainage Should this happen, your slab can actually erode a bit over time. Adding crushed stone under concrete is an excellent way to allow water to drain, because it can flow through the spaces between rocks, thereby preventing it from standing underneath the surface.

How much gravel goes under a sidewalk?

Spread Gravel For a long-lasting sidewalk, plan on a 4-in. base of gravel under 4 in. of concrete. If you live in a frost-free climate with a natural sand base with good drainage, you can pour right on top of the sand.

How thick should a concrete pad be?

4 inches

What size crushed stone for concrete slab?

Question: What size aggregate should be used to make the concrete for a 4 inch slab? Top Answer (37% of 40 votes): 3/4 inch crushed stone. Explanation: #57 rock (3/4) is best for strength. COMMON SENSE FLOORING, INC.

Do you put gravel under footings?

If the soil is very strong, this may not lead to problems. In soils with bearing capacity greater than about 4,000 psf, I suggest excavating next to the footing and under it, and placing compacted large gravel into the space. That should be adequate to support the wall.

Do you need rebar for 4 inch slab?

A concrete slab reinforced with rebar or welded wire fabric should have a minimum 1 1/2 inches of clear cover between the reinforcing and the top of the slab. On grade you can get away with welded wire fabric in most instances. Suspended slabs almost always require rebar reinforcing.

How do you prepare the ground before pouring concrete?

How to Prepare the Ground Before Pouring Concrete Slab

1. Dig the ground down to the proper depth.
2. Smooth out the ground with the flat side of a rake so that you have a level surface.
3. Tamp the ground with a hand tamper or mechanical tamper.
4. Pour 2 inches of small, rounded gravel for additional drainage needs.

Can I pour concrete over old concrete?

If the existing concrete is in good shape structurally, you can pour new concrete over it to freshen it up. Proper prep work is key to success when layering new concrete over old. If the existing concrete is in good shape structurally, you can pour new concrete over it to freshen it up.

How much base is needed for a concrete slab?

Concrete will crack and crumble if it's not poured over a solid, stable base. Bringing in 4 to 6 inches of a good compact-able base is a good rule of thumb, but the exact amount of base for your driveway depends on the condition of the existing soil, the climate, and what you plan to park on your driveway.

What size rebar would be used on a 4 slab?

For driveways and patios a #3 rebar which is 3/8 inch in diameter should be sufficient for the purpose. If you are constructing walls, piers or columns I recommend the use of #4 (1/2 inch) rebar. For building footings I would use a #5 (5/8 inch) rebar.

Why do you put gravel down before pouring concrete?

Whether you pour concrete for a walkway or patio, a strong gravel base is required to prevent the concrete from cracking and shifting. Gravel is especially important in clay soil because it doesn't drain well, which results in water pooling under the concrete slab and slowly eroding the soil as it finally drains.

How long does 4 inches of concrete take to cure?

Generally, concrete sets in 24 to 48 hours allowing for you to walk on it and partially cured within a week (keep the cement free and clear of heavy equipment during this period) at which you can continue building/construction. Most mixes fully cures at 28 days.

How many 80lb bags of concrete make a yard?

On average it will take 90x 40 lb bags, 60x 60 lb bags, or 45x 80 lb bags to fill one cubic yard of concrete.

Should all concrete be vibrated?

Most concrete is under-vibrated or improperly vibrated. The best technique with an internal vibrator is to withdraw the vibrator very slowly, at a rate of around 1 inch per second. As long as bubbles still emerge as the concrete vibrator is withdrawn, more vibration is necessary.

Do I need rebar in concrete patio?

Rebar Basics For concrete patios, use #3 rebar. These bars have a 3/8-inch diameter. The soil under the patio will provide most of the necessary support for the concrete. The rebar installed is intended to minimize cracks caused by the concrete shrinking and swelling depending on the temperature and weather conditions.

Can you lay concrete on grass?

Cheap and versatile and easy to pour, concrete will last you years down the road. You can pour it just about everywhere—including on the grass. Although it takes a little work, pour concrete over grass to create that walkway you always wanted or that mowing preventative you could previously only dream about.
