Can you replace a 4 prong dryer cord with a 3 prong?

It is fairly easy and inexpensive to remove the four-prong cord on a new dryer and replace it with a three-prong cord to match your existing three-slot outlet. It requires only simple tools, and the replacement cord usually costs around $20.

Thereof, can I use a 3 prong cord on a 4 prong dryer?

Note: It's still legal to use a dryer with a 3-prong cord and an older-style receptacle. For example, if you buy a new dryer set up for a 4-prong cord, you can replace the cord with a 3-prong version to fit a 3-slot receptacle in your home.

Beside above, can I use a 4 prong outlet with 3 wires? Its not code-compliant to use a 4-wire receptacle on a 3-wire cord; especially SEU with an un-insulated neutral; and place a neutral-ground bond inside the receptacle box. You can do two things: 1. replace the existing 3-prong receptacle with a new one (if you even need to); and use a 3-prong cord kit for the range.

Herein, can you change a 4 prong stove to a 3 prong?

Therefore, it is code compliant to continue to use your existing 3-prong outlet, and simply replace the 4-prong cord on the appliance with a 3-prong cord that matches your existing outlet.

Are 3 prong dryer cords safe?

3-prong dryer cords contain two 'hot' wires along with a third wire that contained both the ground and neutral wire. If a current happened to make its way onto the ground wire, it could travel up to the dryer. The good news is that you don't have to purchase a new dryer if the current outlet in your home doesn't match.

How do you wire a 4 wire to a 3 wire?

Connect the ground wire of the 3-wire cable to the ground wire of the 4-wire cable. Connect the black wire of the 3-wire circuit to either the red or the black wire of the 4-wire circuit. The red and black wires are the"hot" wires. Either wire can be used to power a circuit.

What do you do when your dryer plug doesn't fit?

Replace the wiring from the dryer's breaker to the receptacle with all new wires. 2. Replace the cord and plug for the dryer to match the outlet in the wall. The first option will bring the old wiring up to current code but this is time consuming and costly, and in some cases, not feasible.

What size wire do I need for a dryer?

Clothes dryers require a relatively thick wire to accommodate their 30 amp circuit. The minimum recommended wire size for clothes dryer circuits is 10 gauge. However, amperage decreases over distance, so appliance manufacturers advise a larger wire gauge for circuits that extend beyond a distance from their source.

How do you test a dryer outlet?

How to Test a 220V Dryer Outlet

Locate the circuit breaker for the 220 volt dryer outlet in the main circuit panel, which is typically located in the garage or utility room.
Turn the power on to the multimeter.
Plug the two tester leads into the multimeter.
Insert the two test leads (one each) into the two "hot" slots of the outlet.

How do you wire a 3 prong plug with 2 wires?

An appliance with only two wires will be double- insulated not requiring an earth wire. Connect the two wires to the live and neutral prongs of the 3-prong plug. If the wires are color-coded, make sure to connect live to live terminal and neutral to the neutral terminal.

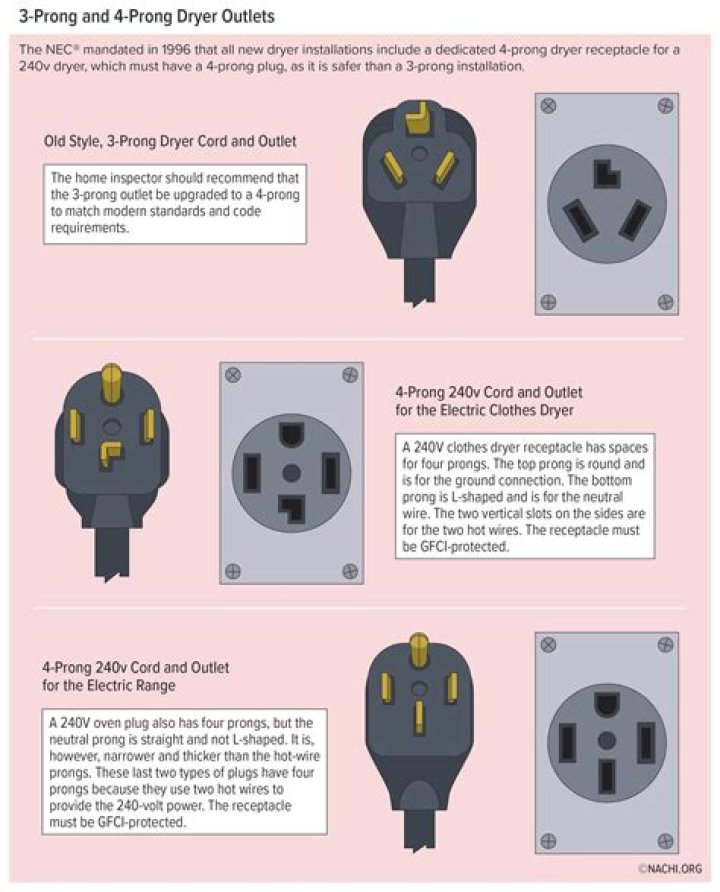

What is the difference between a 3 prong and 4 prong range cord?

The difference is that in older appliance installations, the legally-installed 3-wire cord consisted of wiring that was configured with two hot wires and one neutral wire. The new 4-prong construction provides the 4th grounding conductor that was missing in the 3-wire configuration.

When did 4 prong plugs become standard?

2000

What is the most common dryer plug?

A typical gas dryer comes with a standard three-prong NEMA 5-20 plug. It has one hot terminal, one neutral and a ground and plugs into a standard three-prong, 110-volt receptacle.

Are New Dryers 3 or 4 prong?

Most new dryers now come with four-prong plugs, but they can be converted to use three-prong cords to fit older dryer outlets. Some dryers, though, are sold without any cord at all; you are left to buy and install whatever cord fits the dryer outlet you happen to have.

What to do if there is no ground wire?

If the box is not grounded, you have two choices:

Run a ground to the box. This would mean running a new wire back to the panel (could be bare copper, but if you're doing the work may be better just to run a new wire - 14/3 would be the best), which could mean opening up drywall.
Wire the fan without ground.

Which is the hot wire on a 3 prong plug?

The color code is standard in electrical wiring. The black wire is the hot wire. It becomes energized as soon as you insert the plug into a working receptacle. The white wire is known as the neutral or return wire.

How is 220 wired?

The Basics of 220-Volt Wiring For all intents and purposes, they are the same. The hot wires that come into the panel from the line transformer have a voltage of 240 volts between them, and each connects to a hot bus. A 220-volt cable also includes a ground wire, which connects to the ground bus in the panel.

Why would a neutral wire be hot?

The power wire that is grounded is called the “neutral” wire because it is not dangerous with respect to exposed metal parts or plumbing. The “hot” wire gets its name because it is dangerous. The grounding of the neutral wire is not related to the operation of electrical equipment but is required for reasons of safety.

Does a 3 prong dryer outlet have to be grounded?

The old style of 3-prong dryer cords did not include a ground wire. Changes in the National Electrical Code now require dryers to be wired with a ground wire. This means the cords now have 4-prong plugs. There are some cases where you cannot plug your dryer into your receptacle.

Where does the ground wire go on a 3 prong dryer outlet?

Originally, there was a green wire on the cord itself, and that was connected to the screw on the top of the first picture. This is, I assume, used to ground the case and prevent shocks when touching the exterior of the dryer. Now with the 3-pronged plug, there is no ground wire on the cord.

Are dryer power cords interchangeable?

For the most part, you don't need a new power supply cord when you're replacing an old dryer with a new one. Since most new dryers don't come with a power cord, the appliance salesman might recommend that you purchase a new one.
